Proffieboard V3

[profezzorn]

If you are ordering a PCB, you’ll need more layers than that, at the very least:

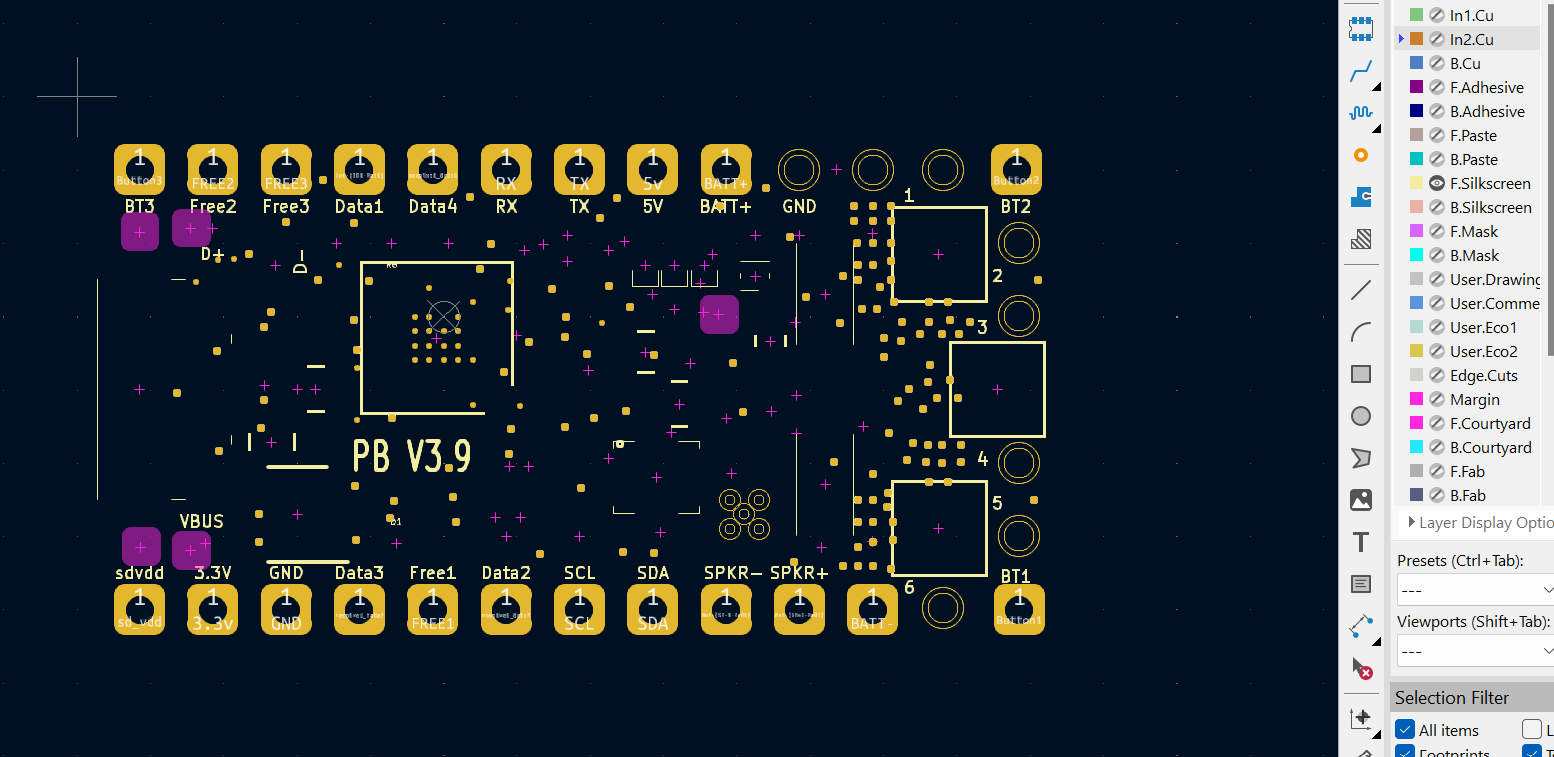

In1.Cu, In2.Cu, F.Mask, B.Mask and Edge Cuts (in addition to the ones you have selected.)
You’ll also need a drill file.

If you’re using oshpark though, it’s much easier to just upload the kicad file directly.

[Leonard_Gambo]

I thought OSHpark doesnt do the Proffies? I already ordered the test rig PCBs.

[Leonard_Gambo]

Yeah its not showing the holes in the PCB. How do I add that?

[Leonard_Gambo]

OK figured out how to drill SOME holes. lol. Probably a box I need to check or something.

[profezzorn]

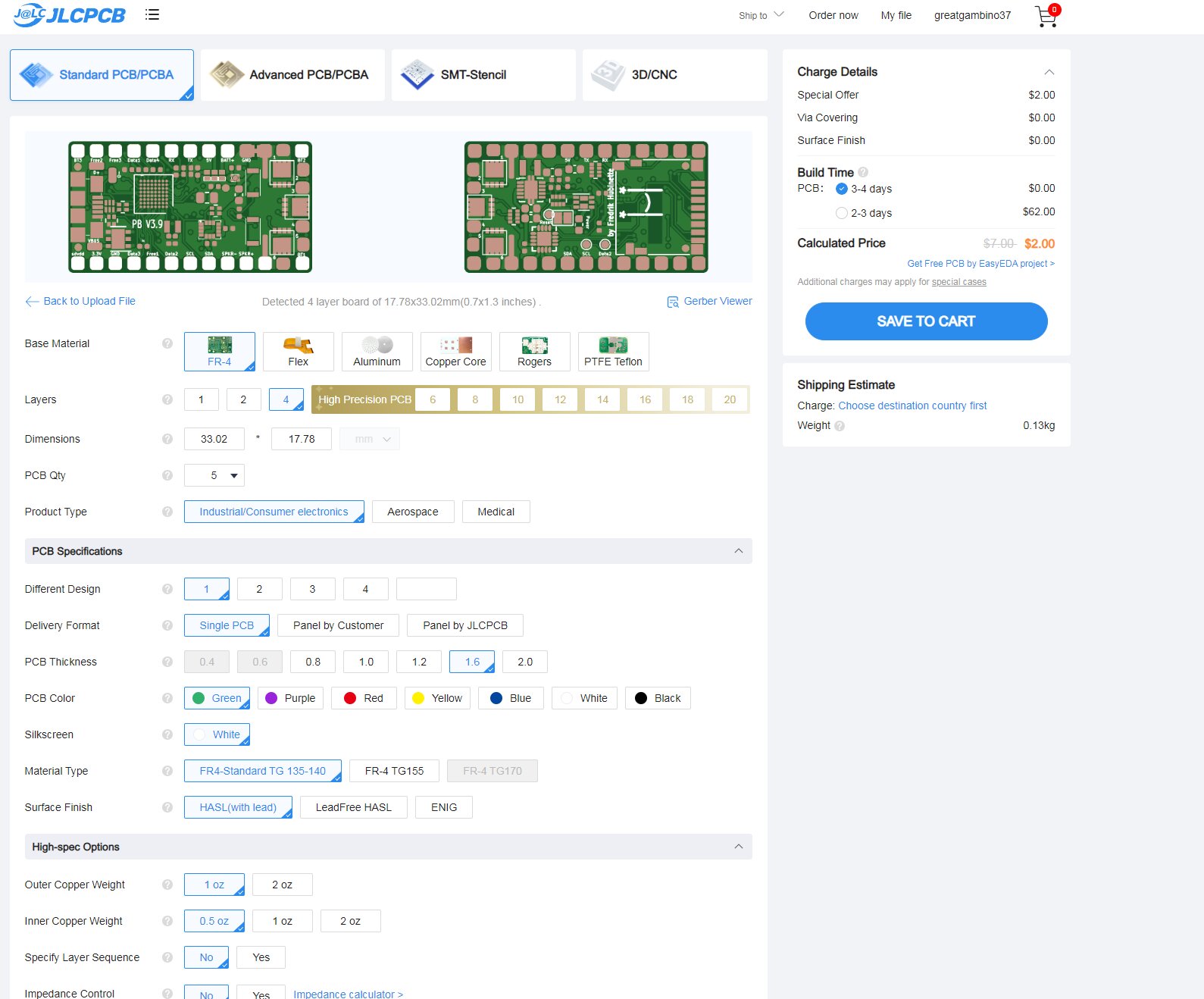

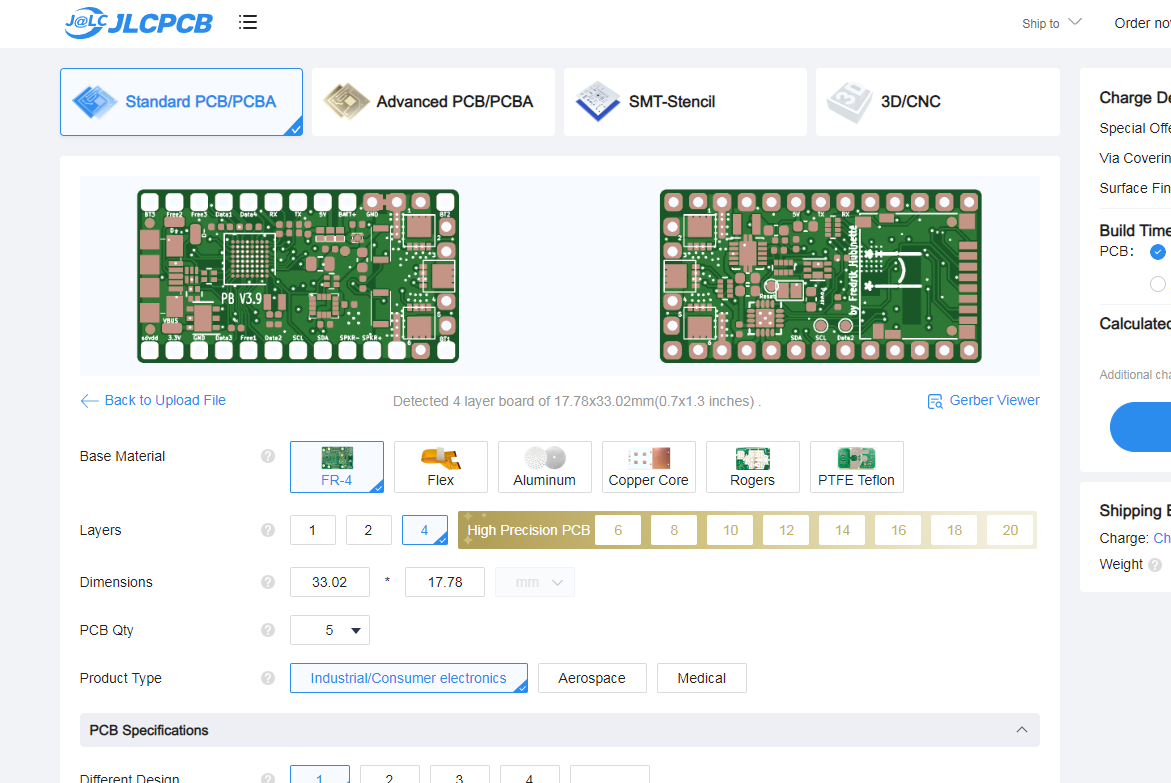

I haven’t used JLPCB, so I don’t think I can help much.

[Leonard_Gambo]

Mind if I ask who you use for your Proffieboards?

[Leonard_Gambo]

Is the front silkscreen supposed to look like that?
Its on some of the pads.

[profezzorn]

@Leonard_Gambo

Mind if I ask who you use for your Proffieboards?

I didn’t actually do the assembly, and I didn’t order the boards, so I don’t know where the PCBs got made.

@Leonard_Gambo

Is the front silkscreen supposed to look like that?

I think it’s normal, the PCB maker will only print on the mask.
