Wiring diagram for a blaster

Proffieboards
1

Hi all,

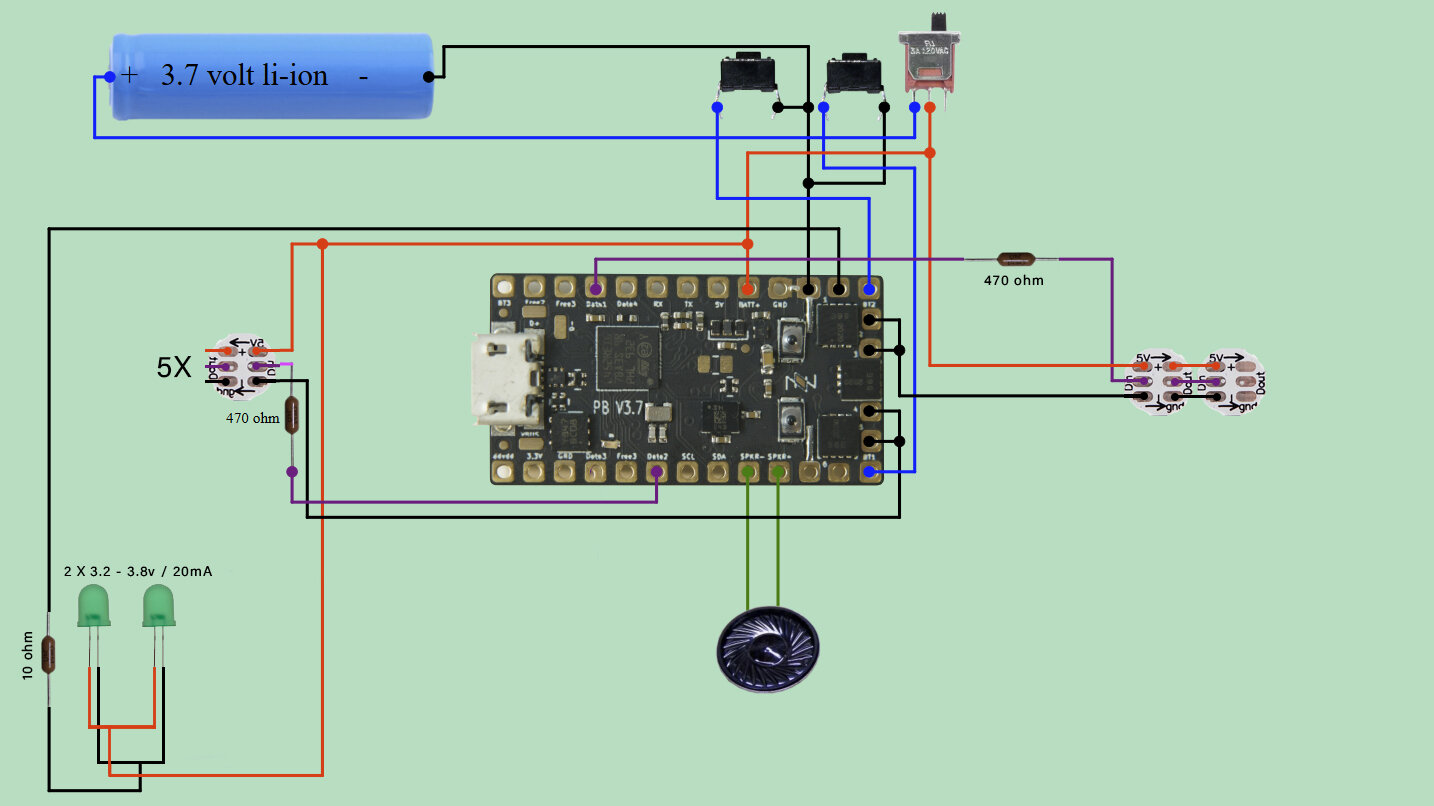

I am working on a project to build a Blade Runner blaster and install it with proffie. I want to use three “blades”: one with two and another one with five chainable neopixel LEDs, and a third blade with two green LEDs in parallel. Could someone check my wiring diagram, especially if the resistors are ok?

Many thanks!

BR_Blaster_Config
BR_Blaster_Config1434×806 113 KB

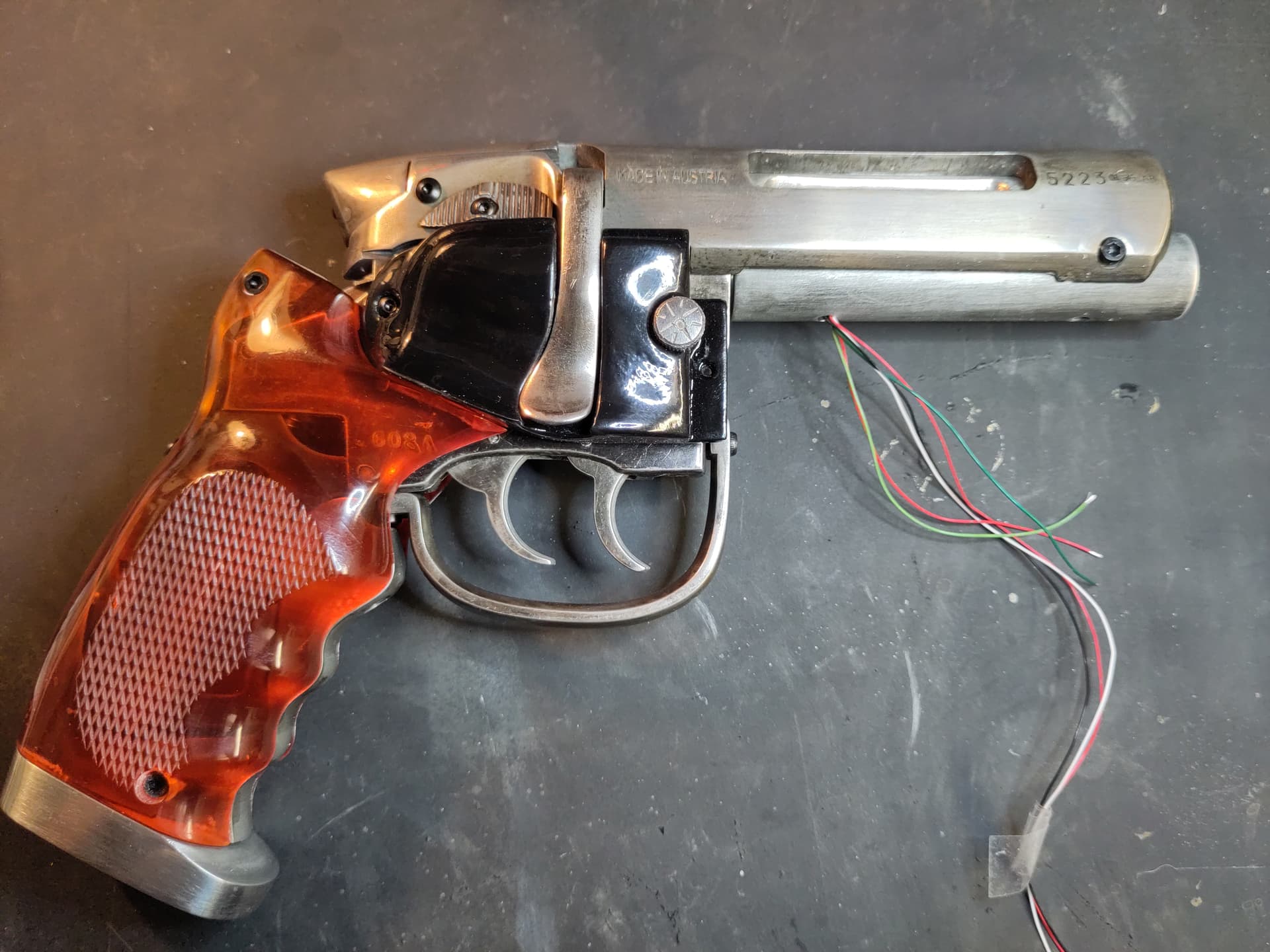

This is what the blaster looks like right now :slight_smile:

IMG_20250824_153616
IMG_20250824_1536161920×1440 204 KB

2

Since the blades are short, you don’t need to link LED2/3 and LED3/4 together, other than that everything seems fine. The resistor seems reasonable, assuming the the LEDs really are ok with 3.8 volts.

1 Like
3

Follow-up question: Is it ok if the third “blade” is defined as WS2811? Those are the two LEDs.
I used your configurator to get the blade config:

};
BladeConfig blades[] = {
 { 0, WS281XBladePtr<2, bladePin, Color8::GRB, PowerPINS<bladePowerPin2> >(),
    WS281XBladePtr<5, blade2Pin, Color8::GRB, PowerPINS<bladePowerPin4> >(),
    WS281XBladePtr<2, blade3Pin, Color8::GRB, PowerPINS<bladePowerPin1> >()
  , CONFIGARRAY(presets) },
};
#endif
1 Like
4

No, they’re not WS281X LEDs. You’d configure it using SimpleBladePtr with a single led and blade pin.

There’s an option in the configurator for a single LED that demonstrates how this can be done.

You can just use CH2LED and of course whatever power pin you choose. (1 in this case it seems)

5

Like this?

};
BladeConfig blades[] = {
 { 0, WS281XBladePtr<2, bladePin, Color8::GRB, PowerPINS<bladePowerPin2> >(),
    WS281XBladePtr<5, blade2Pin, Color8::GRB, PowerPINS<bladePowerPin4> >(),
    SimpleBladePtr<CH2LED, NoLED, NoLED, NoLED, bladePowerPin1, -1, -1, -1>(),
    CONFIGARRAY(presets) },
};
#endif

Apologies if this is very basic.

6

Correct.
