I installed OLED on my proffie v3.9. The boot.bmp and default battery display are working. But the on.bmp isn’t playing (crystal spin). It will continue to display the default battery image. Am I doing something wrong or a setting I missed?
if you provide us with the config and the method of the setup.
Here’s the config. I’m on the latest proffieOS8.10. on.bmp is currently in the font root folder.
#ifdef CONFIG_TOP
#include "proffieboard_v3_config.h"
const unsigned int maxLedsPerStrip = 144;
#define SHARED_POWER_PINS
#define NUM_BLADES 1
#define NUM_BUTTONS 2
#define VOLUME 2000
#define CLASH_THRESHOLD_G 3
#define PLI_OFF_TIME 10000
#define IDLE_OFF_TIME 600 * 1000
#define MOTION_TIMEOUT 900 * 1000
#define ENABLE_ALL_EDIT_OPTIONS
#define ENABLE_SSD1306
#define MOUNT_SD_SETTING
#define FETT263_SWING_ON
#define FETT263_THRUST_ON
#define FETT263_TWIST_ON
#define FETT263_TWIST_OFF
#define FETT263_DUAL_MODE_SOUND
#define FETT263_CLASH_STRENGTH_SOUND
#define FETT263_SAY_COLOR_LIST
#define FETT263_SAY_COLOR_LIST_CC
#define FETT263_SAY_BATTERY_PERCENT
#define FETT263_MULTI_PHASE
#define FETT263_EDIT_MODE_MENU
#endif
#ifdef CONFIG_PROP
#include "../props/saber_fett263_buttons.h"
#endif
#ifdef CONFIG_PRESETS
Preset presets[] = {
{ "Villain;common", "",
StylePtr<Layers<Mix<HoldPeakF<SwingSpeed<250>,Scale<SwingAcceleration<100>,Int<50>,Int<500>>,Scale<SwingAcceleration<>,Int<20000>,Int<10000>>>,RandomFlicker<StripesX<Int<15000>,Scale<HoldPeakF<SwingSpeed<200>,Scale<SwingAcceleration<100>,Int<50>,Int<300>>,Scale<SwingAcceleration<100>,Int<24000>,Int<16000>>>,Int<-3200>,Int<-200>>,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>,Mix<Int<7710>,Black,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>>,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>,Mix<Int<19276>,Black,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>>>,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>>,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>>,TransitionEffectL<TrWaveX<RgbArg<BLAST_COLOR_ARG,Rgb<255,255,255>>,Scale<EffectRandomF<EFFECT_BLAST>,Int<100>,Int<400>>,Int<100>,Scale<EffectPosition<EFFECT_BLAST>,Int<100>,Int<400>>,Scale<EffectPosition<EFFECT_BLAST>,Int<28000>,Int<8000>>>,EFFECT_BLAST>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<12000>,Int<60000>>>>,TrFadeX<Scale<ClashImpactF<>,Int<200>,Int<400>>>>,EFFECT_CLASH>,TransitionEffectL<TrWaveX<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Int<100>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>>,EFFECT_CLASH>>,LockupTrL<TransitionEffect<AlphaL<AlphaMixL<Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<22000>>>,AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,BrownNoiseFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>,300>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<22000>>>>,AlphaL<AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<20000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,TrExtend<5000,TrInstant>,TrFade<5000>,EFFECT_LOCKUP_BEGIN>,TrConcat<TrJoin<TrDelay<50>,TrInstant>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,AlphaL<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<20000>,Int<60000>>>>>,TrFade<300>>,TrConcat<TrInstant,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL,Int<1>>,ResponsiveLightningBlockL<Strobe<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,AudioFlicker<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Blue>,50,1>,TrConcat<TrExtend<200,TrInstant>,AlphaL<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Int<10000>,Int<21000>>,Int<10000>>>,TrFade<200>>,TrConcat<TrInstant,RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,Int<1>>,LockupTrL<AlphaL<TransitionEffect<RandomPerLEDFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>>,BrownNoiseFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>,Int<300>>,TrExtend<4000,TrInstant>,TrFade<4000>,EFFECT_DRAG_BEGIN>,SmoothStep<Scale<TwistAngle<>,IntArg<DRAG_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrWipeIn<200>,TrWipe<200>,SaberBase::LOCKUP_DRAG,Int<1>>,LockupTrL<AlphaL<Stripes<2000,4000,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>,Mix<Sin<Int<50>>,Black,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>,Mix<Int<4096>,Black,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>>,SmoothStep<Scale<TwistAngle<>,IntArg<MELT_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrConcat<TrExtend<4000,TrWipeIn<200>>,AlphaL<HumpFlicker<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>,RotateColorsX<Int<3000>,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>,100>,SmoothStep<Scale<TwistAngle<>,IntArg<MELT_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrFade<4000>>,TrWipe<200>,SaberBase::LOCKUP_MELT,Int<1>>,InOutTrL<TrWipeX<BendTimePowInvX<IgnitionTime<300>,Mult<IntArg<IGNITION_OPTION2_ARG,10992>,Int<98304>>>>,TrWipeInX<BendTimePowX<RetractionTime<0>,Mult<IntArg<RETRACTION_OPTION2_ARG,10992>,Int<98304>>>>,Black>>>(),
"the\nchild"
},
};
BladeConfig blades[] = {
{ 0, WS281XBladePtr<144, bladePin, Color8::GRB, PowerPINS<bladePowerPin4, bladePowerPin5> >(), CONFIGARRAY(presets) },
};
#endif
#ifdef CONFIG_BUTTONS
Button Button1{BUTTON_POWER, powerButtonPin, "pow"};
Button Button2{BUTTON_AUX, auxPin, "aux"};
#endif
#ifdef CONFIG_STYLES
#endif
can you provide the
file

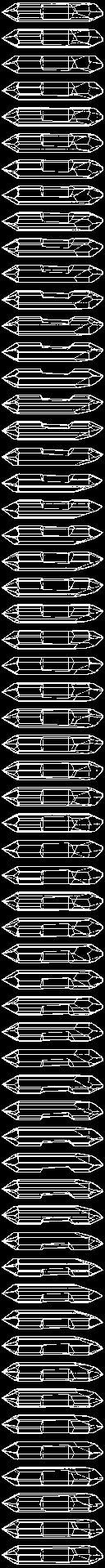

Here’s the on.bmp. This bmp works as idle. And if I have a idle.bmp with it, it will work correctly, but not by itself. Hope that means sense.
Here’s the serial for ignition. It doesn’t seem to even attempt to boot.
Ignition.
unit = 0 vol = 0.50, Playing Villain/preon.wav
channels: 1 rate: 44100 bits: 16
Playing Villain/out/out01.wav
channels: 1 rate: 44100 bits: 16
unit = 1 vol = 0.00, Playing Villain/hum/hum01.wav
channels: 1 rate: 44100 bits: 16
humstart: 2000
Serial Montior " off ":
Turning off 0.00@0
Turning off 0.00@0
Turning off 0.00@0
Turning off 0.00@0
Turning off 0.00@0
unit = 0 vol = 0.50, Playing Villain/in/in01.wav
channels: 1 rate: 44100 bits: 16
DISPLAY WAKEUP
Display initialized.
No sounds found: pstoff
Amplifier off.
Unmounting SD Card.
Battery voltage: 4.14
Time = 10000. PLI_OFF_TIME expired.
DISPLAY SLEEP
Booster off.
Battery voltage: 4.15
Just to clarify, if you temporarily rename the on.bmp to idle.bmp or boot.bmp and use it, the file itself works?
That’s correct.
Does on.bmp show up if you run the “effects” command?
This seems like a bug in the playing logic.
It’s not obvious why by reading the code though.
If you add the ENABLE_DEVELOPER_COMMANDS define and run setmessage foo in the serial monitor, does on.bmp start working afterwards?
It does.
Found on.bmp files: one unnumbered file in Villain
Found boot.bmp files: one unnumbered file in subdirs in Villain
That does work. Foo output on the display.
Something else that I noticed. If I turn the saber on with swing gesture controls before the boot.bmp finishes it’s animation, on.bmp will run. But if I allow boot.bmp to finish and get to battery level, it will not play when turned on.
I may have figured it out.
Am I right if I guess that you do not have an “out.bmp”?
If you copy on.bmp to out.bmp, does it work better?
I don’t have a out.bmp. And that did work. It was working with a idle.bmp as well. I just didn’t I know that it wouldn’t playing by itself.
1 Like
It should play by itself, and I will fix it.
2 Likes
I will try to test as well.
