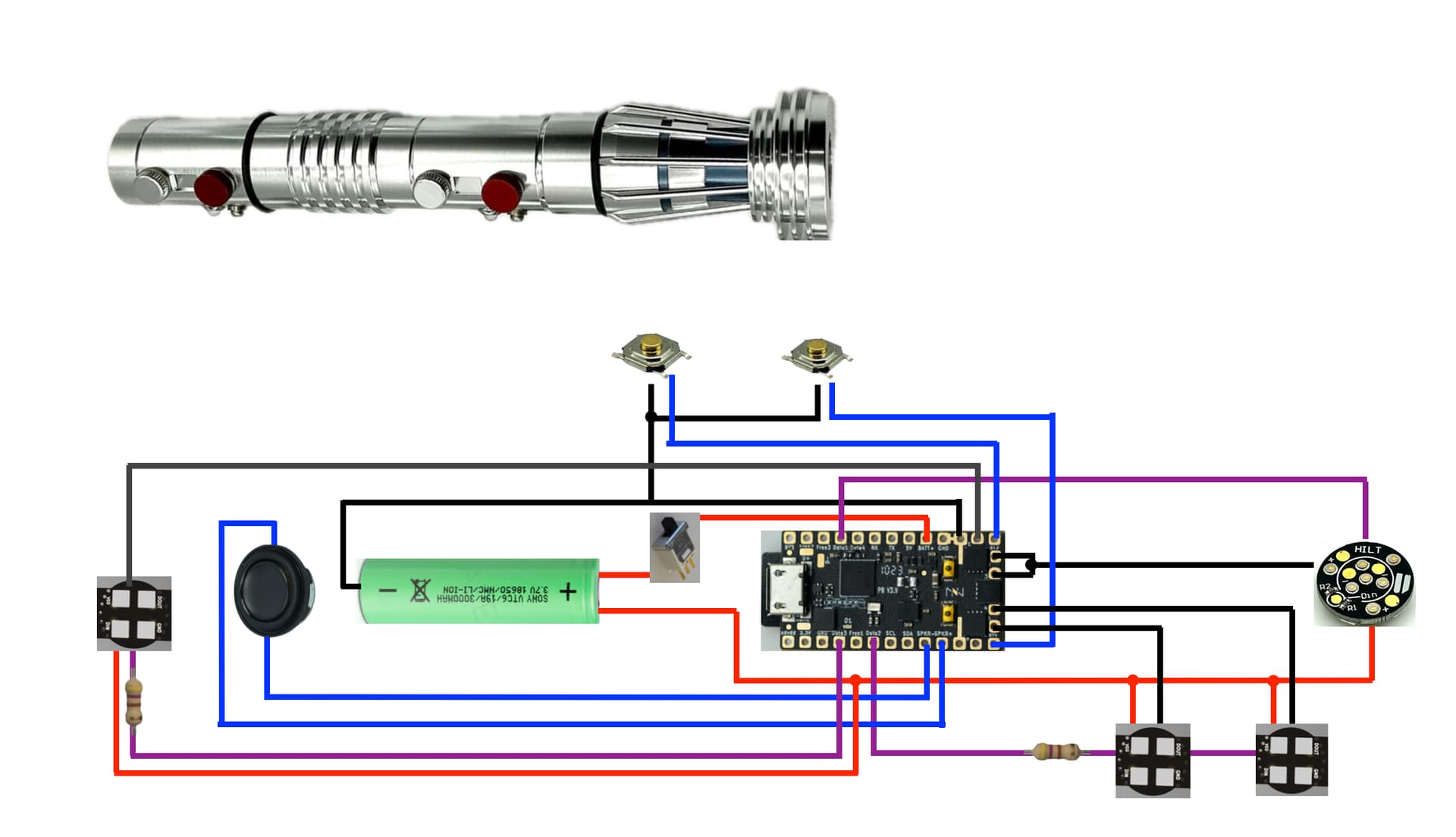

Hi everyone, I have a maul Ventress staff from saber armory that in going to install. I have installed one other proffie saber but only basic with no accent leds. I was just hoping in could get comments and inputs to see if I have my wiring figured out in my diagram. the maul will have 3 accent leds, 2 in sequence for the CC and one on its own. the Ventress with 2 in sequence for the CC. The micro leds I will get have resistors on them so don’t think I need resistors on the data line.
thanks
Diagrams look goot to me, however, I would wire the positive for all pixels direct to the battery and have the kill switch only cutting power to the proffie. This assures that the pixels are getting full amperage and its not going thru the switch (which are usually rated for 3amps).

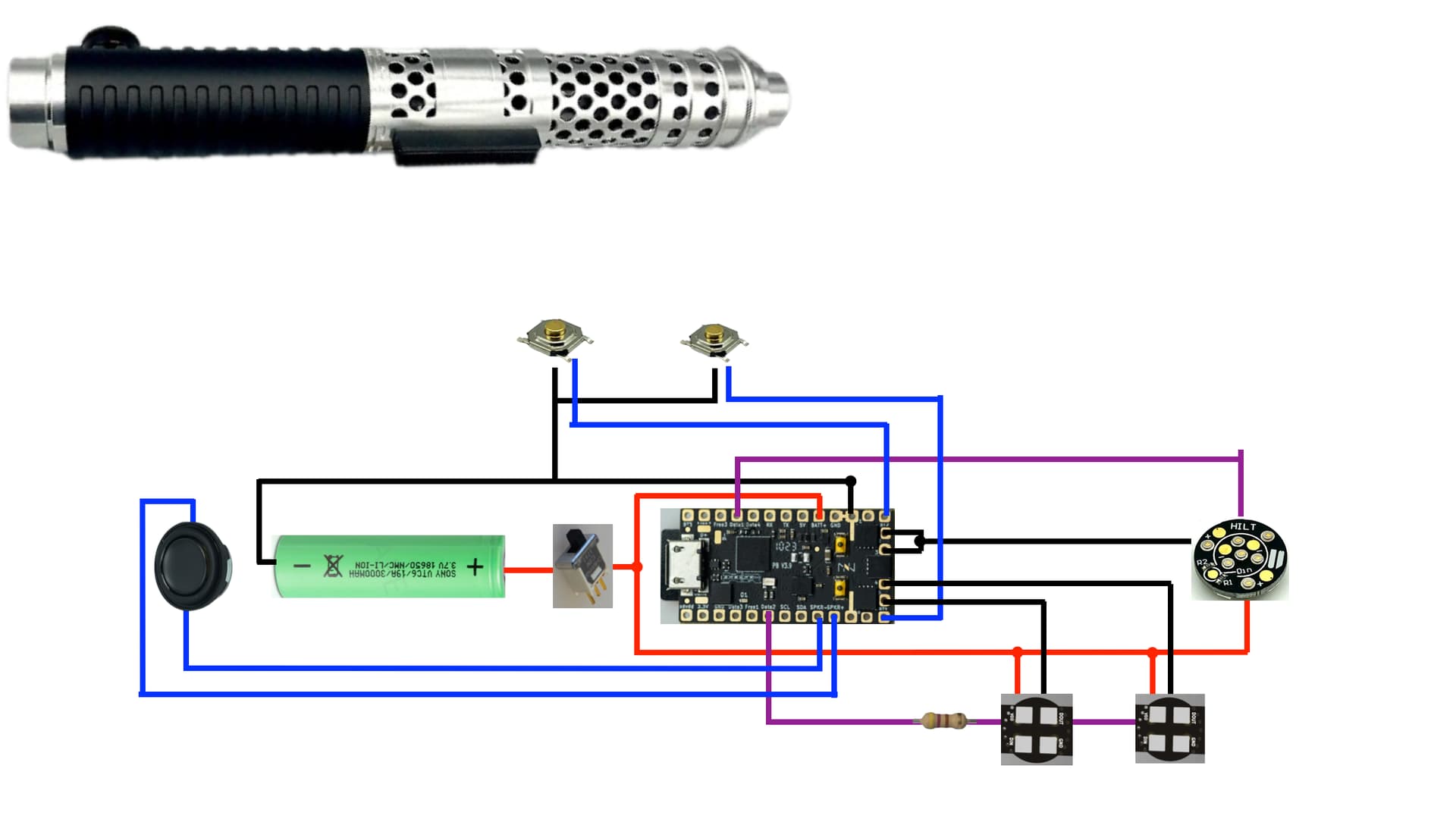

so for example like this?
Awesome!! Thank you, would you also be able to point me in the right direct for the config file/ what that would look like? I presume it would be similar to the one on the config generator but I don’t think I’m using the same terminals that they are on the board
