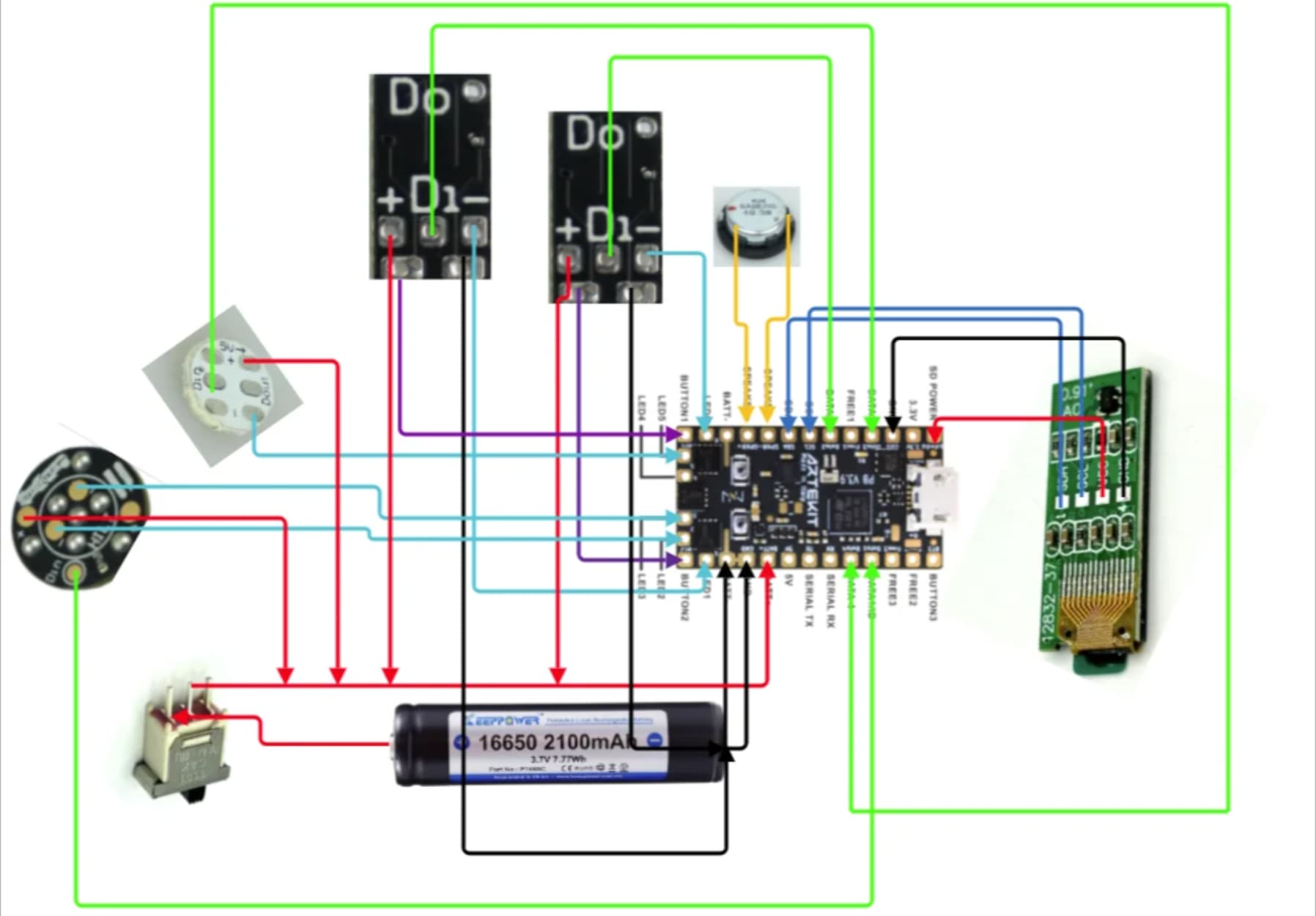

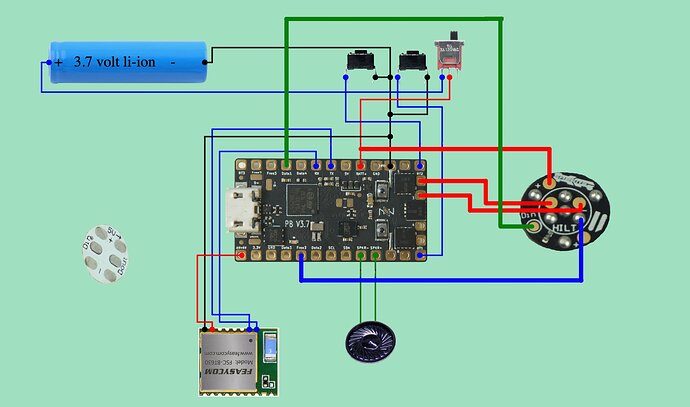

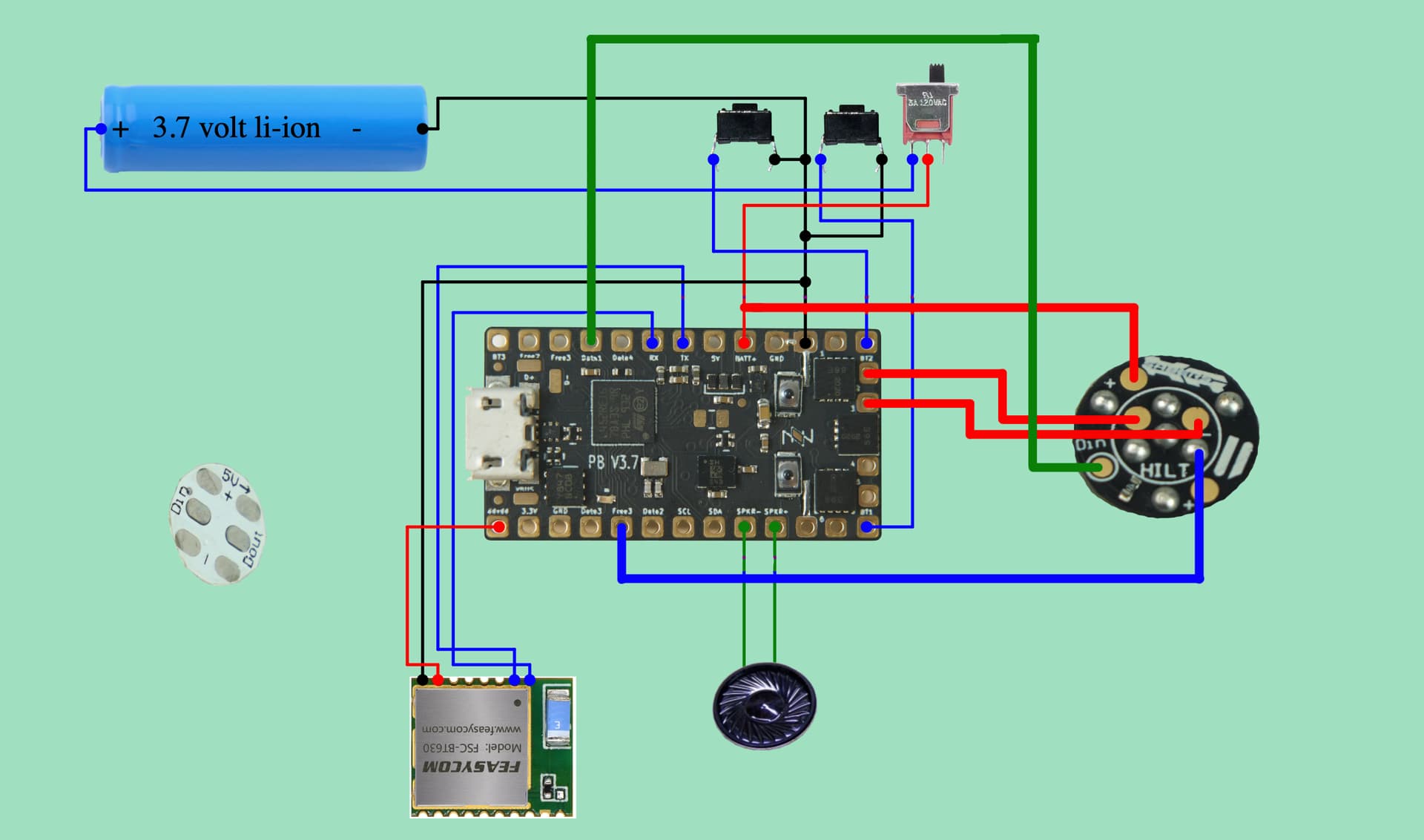

Im really new to lightsaber making and I recently bought the AS3 hilt and the new eco cc chassis that goes with it. The problem is that every tutorial I look at, they use the small Nano NeoPixel RGB Accent LED. I looked at Mr.Konnik’s diagram and the old as3 install guide to come up with a custom diagram that is unfinished. Do any of yall know where each wire from each pad on the led would go? I have like no clue where they would go cause there has only been like 1 diagram made that has the led im talking abt in it. Some other stuff in my diagram may be wrong so if u see something that may look wrong please tell me!
Personally, I have no idea what an AS3 hilt is or who Mr.Konnik is.
There’s no information there that explains what you actually have.
If instead you could give details, link to some pictures etc…, people will be more than happy to help you here

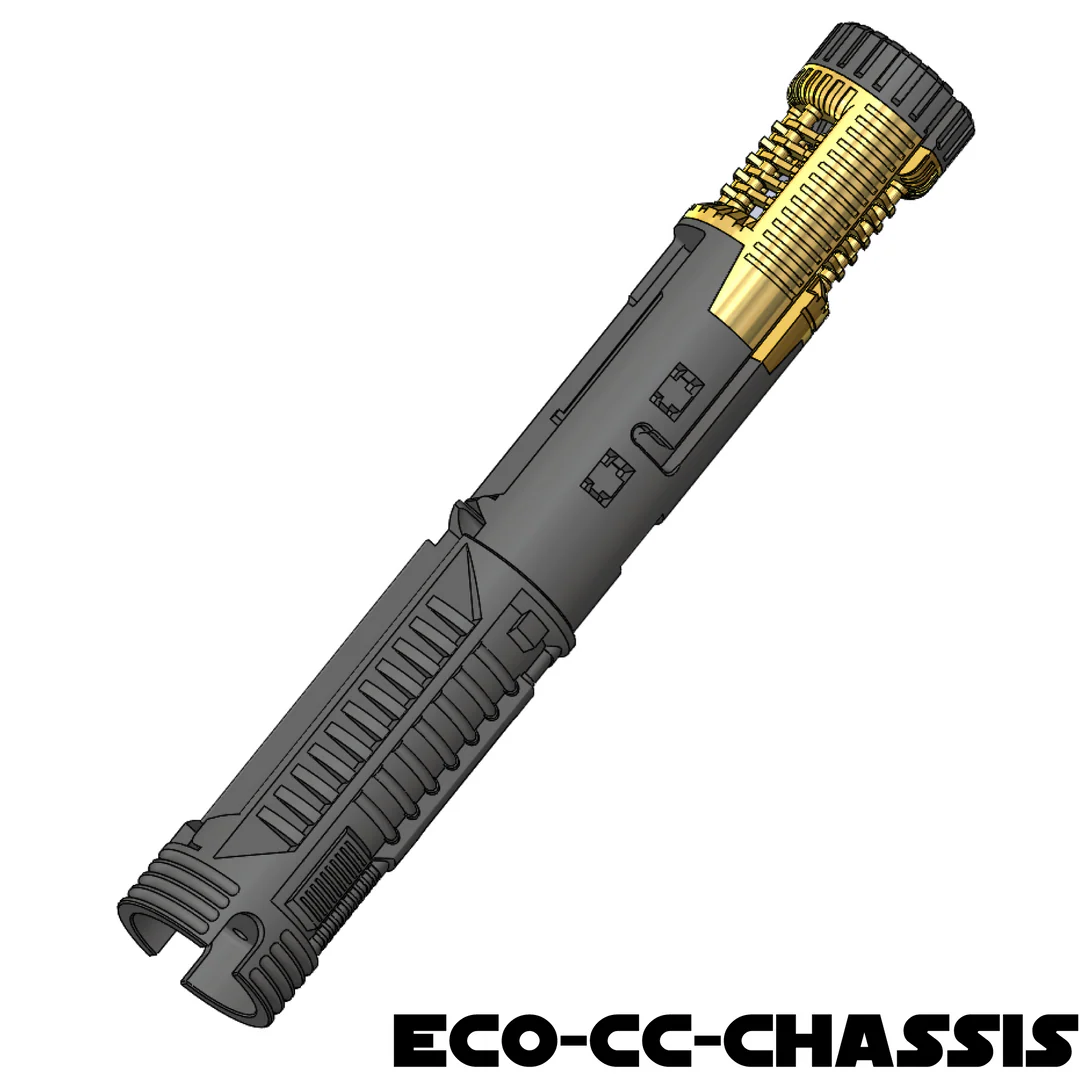

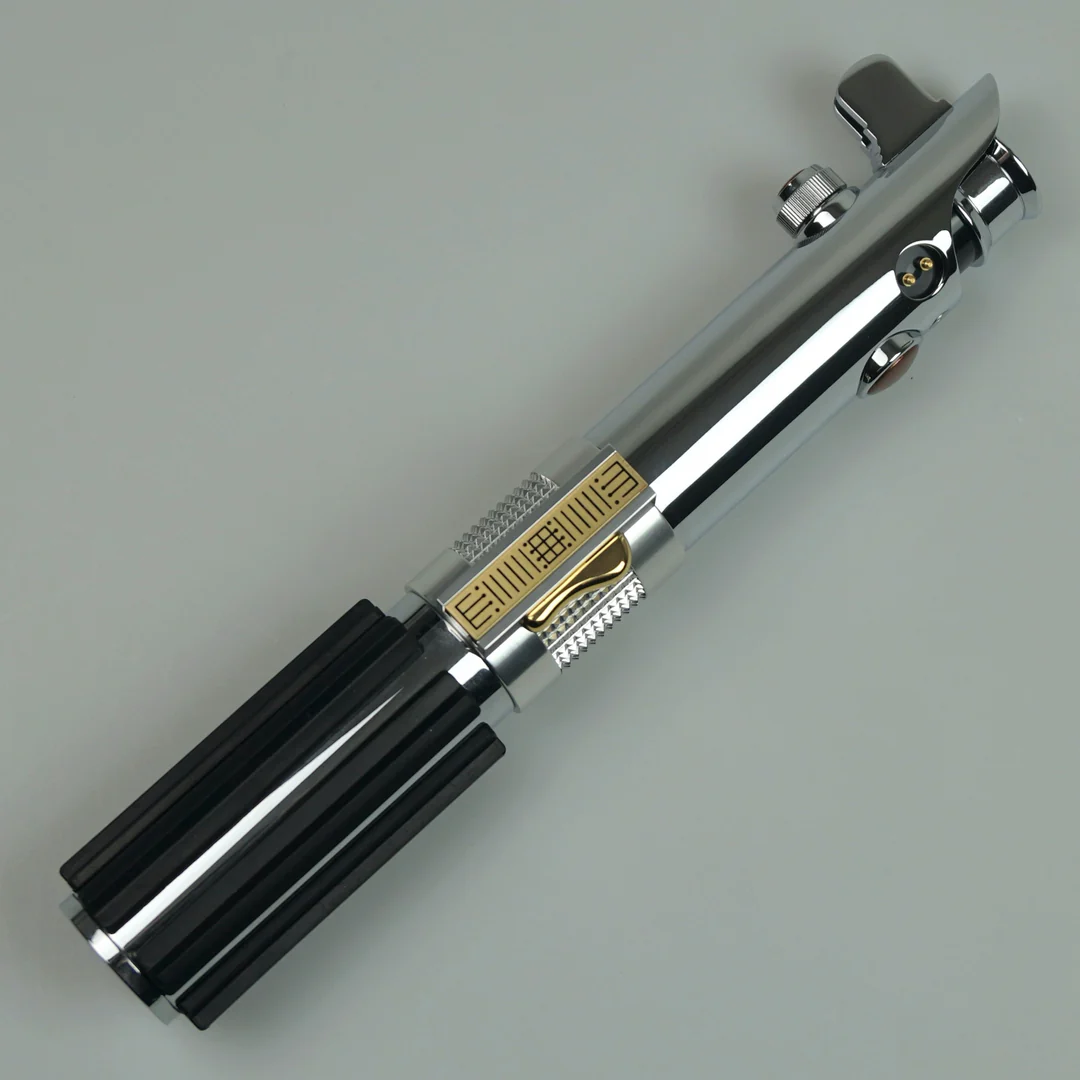

The hilt in the picture is the AS3 and the chassis is the one that comes with it. In the description of the eco cc chassis product, it specifically says to use the neopixel 5050 accent led.

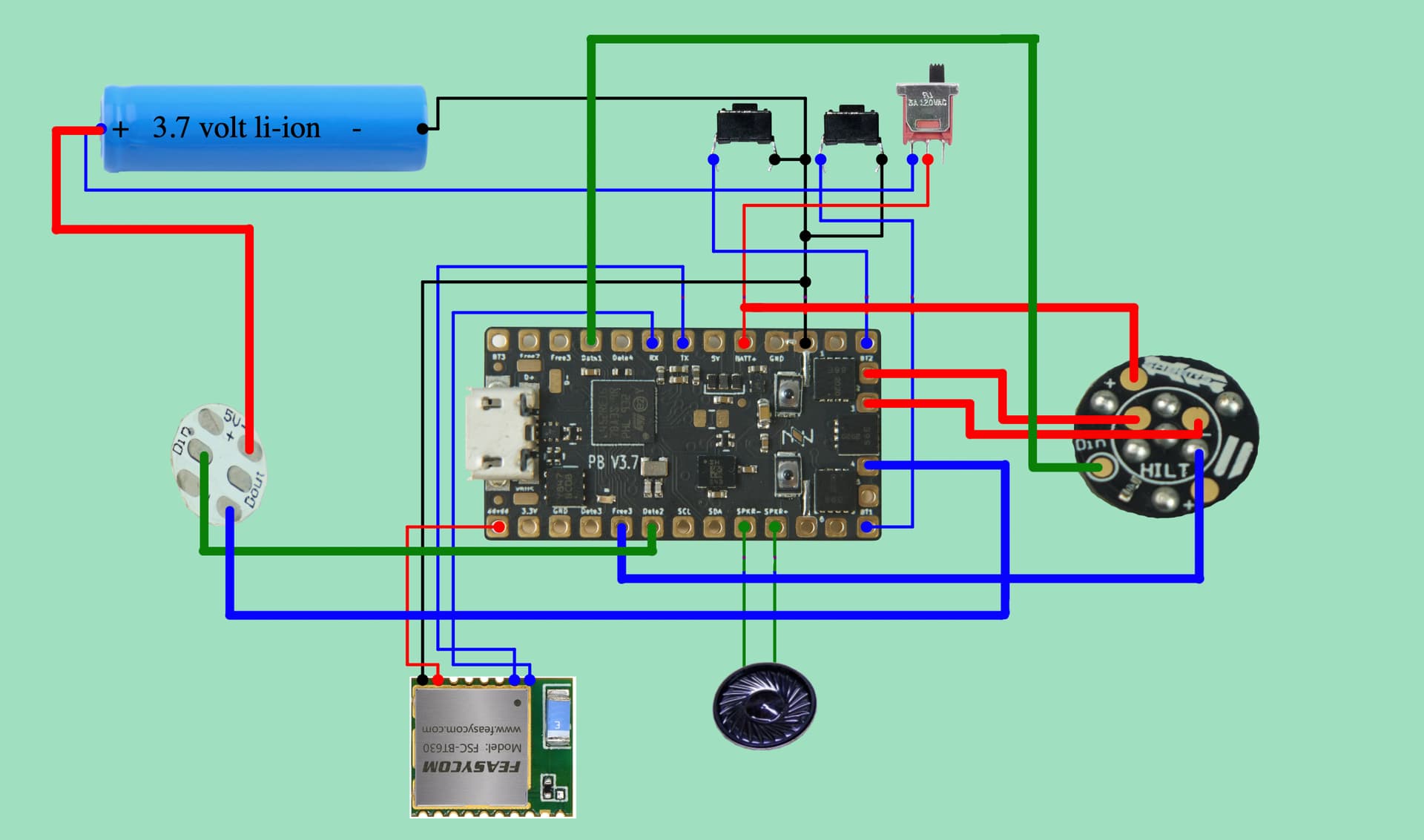

I would just use data2 and led4 for that. You would just need to specify it in you config file.
Are you sure? Im looking at the diagram made by Konnik and he had his led hook up to led5, Data4, and some wire that merges with another wire.
It doesn’t matter.
Any data line, any LED pad, and then just hooked into battery power.
There’s not one right way to do things.
Ok so what pads from the led would go to the data2, led4, and the battery power?
Data (may be labeled Din), GND/Negative, and VIN/Positive.
Wait so data2 goes to Din, led4 to negative, and positive side of battery to positive?
Yes.
More characters
Ok thanks!
1 Like
Yes. Depending on how your wires need to be routed it may be easier to use other pads, but that’s the gist of it.
Take a look at the table on the proffieboard page for pad capabilities.
WS281x column for data capable pads and FET for power pads
Ok, im looking at the page. Is there anything in particular I should be looking out for or something?
Nope, just letting you know that table exists so you know what pads can be used for what.
What you presented prior though is fine.
Oh ok! Thanks!
