Help with Custom Ulfberhtsaber

[NoSloppy]

@WerdaKemir

The sound font, would consist of energy crackles, thunder clashes, with the ignition sound being Boba’s Grav Bombs (closest sound to an EMP). Blade flashes to life when ignited for a sec, grav bomb sound, blade shuts down, then springs back to life in a blur of lightning.

Based on this, but taking your already-created blade style into account, here’s a start for your font What do you think?

Ulfberhtsaber_font

There are 2 preons, 2 outs, 2 ins, 2 pstoffs, and hum.
One of the ignition sounds is the Seismic Charge you requested, the other is a thunder clap.
ReadMe.txt, config.ini and smoothsw.ini files are included.
Retraction in.wavs paired to pstoff.wavs using config.ini entries.

You will likely want to remove the IgnitionTime<> values in your EFFECT_IGNITION so these sync correctly.
You can add effects and other sounds from other fonts if you’d like.

“This is just the beginning.”

[WerdaKemir]

@profezzorn

This may be implied, but for this much power you really need to use both BATT- pads on the proffieboard

I thought as much, I was hoping to get around it though. Do I need to split the switches negatives as well? Or can I go through a single splice/side?

[WerdaKemir]

@NoSloppy

Based on this, but taking your already-created blade style into account, here’s a start for your font What do you think?

I like it a lot!!!

I created some inside the Fett style generator today as well.

Ulfberhtsaber Middle.txt (7.0 KB)
Ulfberhtsaber Outer.txt (7.0 KB)

This is what I was asking about. How to set this up to the 2 blades. The middle blade being ran of the one style and the outer the other. I don’t have access to my files with the sounds right now, but I had added them in the generator when I made these styles. Everything lines up perfectly as far as sound and blade effects/motions.

I’m going to spend some time tomorrow trying to figure out how to add the sound fonts to the respective places.

The biggest thing I need help with is getting the styles to line up respectively.

[WerdaKemir]

@NoSloppy

There are 2 preons, 2 outs, 2 ins, 2 pstoffs, and hum.
One of the ignition sounds is the Seismic Charge you requested, the other is a thunder clap.
ReadMe.txt, config.ini and smoothsw.ini files are included.
Retraction in.wavs paired to pstoff.wavs using config.ini entries.

I really appreciate you helping to set this up, I know how long it took me and I had the generator to help lol. After playing with the sound fonts I think I have found the one I love right now. (That may change after five mins lol). Hardest part for me is the coding side of things. I look at and see Chinese, where you guys look at it and see a lightsaber spinning through the air.

[NoSloppy]

I posted that above. I gave you your config presets and blade config. All you do is put the styles in the same order as the blades. That’s how you line them up. So you’re outside blades with 75 pixels each is the first blade, so the top style is for them. The second blade is your 104 Center strips, so the second blade style is for them. That’s really it.

Just find a song you think is appropriate for a track if you wish and name it
Ulfberhtsaber/tracks/ClashOfTheCrystals.wav

[profezzorn]

@WerdaKemir

Do I need to split the switches negatives as well?

Where and how you split it is up to you, as long as you have enough copper at every point along the way. But by the time you get the power to the proffieboard, it’s going to need to go to two points, or you might overheat the board itself.

[WerdaKemir]

@NoSloppy

I posted that above. I gave you your config presets and blade config. All you do is put the styles in the same order as the blades. That’s how you line them up. So you’re outside blades with 75 pixels each is the first blade, so the top style is for them. The second blade is your 104 Center strips, so the second blade style is for them. That’s really it.

Ok perfect, I saw that, but wasn’t 100% sure that’s how it went. Again thank you so much!!!

[WerdaKemir]

@profezzorn

Where and how you split it is up to you, as long as you have enough copper at every point along the way. But by the time you get the power to the proffieboard, it’s going to need to go to two points, or you might overheat the board itself.

Thank you for that information!! I am about to order everything, and printing should take about a week or two. Hopefully I will have this thing up and running in no time!

[WerdaKemir]

#ifdef CONFIG_PRESETS
Preset presets[] = {

{ "Ulfberhtsaber;common", "Ulfberhtsaber/tracks/ClashOfTheCrystals.wav",

/* copyright Fett263 CustomBlade (Primary Blade) OS6 Style
https://fett263.com/fett263-proffieOS6-style-library.html#CustomBlade
OS6.7 v4.020
Single Style
Color Blend (Erratic)
Default: ElectroStaff
1: Shock Baton

Base Color: Rgb<0,0,255> (0)

--Effects Included--
Preon Effect: Faulty Ignition (PreOn Color)
Ignition Effect: Lightning Strike
Retraction Effect: Glitch Off
Lockup Effect: Intensity Lockup V1, Begin Effect: Real Clash, End Effect: Full Blade Absorb
LightningBlock Effect: Force Lightning
Drag Effect: Intensity Sparking Drag
Melt Effect: Intensity Melt
Stab Effect: AudioFlicker Stab
Blast Effect: Responsive Blast Fade (Large)
Clash Effect: Responsive Clash
Swing Effect: Lightning Swing
*/
StylePtr<Layers<Mix<Scale<SlowNoise<Int<1500>>,Int<0>,Int<20000>>,StaticFire<Strobe<RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>,Strobe<Rgb<100,100,150>,RandomPerLEDFlicker<RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>,Black>,50,1>,100,1>,Mix<Int<6425>,Black,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>>,0,5,2,1000,5>,BrownNoiseFlicker<BrownNoiseFlicker<RgbArg<BASE_COLOR_ARG,Rgb<255,0,0>>,Black,300>,Stripes<3000,-4000,Rgb<50,50,75>,Rgb<100,100,150>,Rgb<10,10,15>,Rgb<150,150,225>>,200>>,AlphaL<BrownNoiseFlickerL<StripesX<Int<2600>,Scale<IncrementWithReset<ThresholdPulseF<StrobeF<Int<6>,Int<1>>,Int<32000>>,ThresholdPulseF<ThresholdPulseF<IsLessThan<HoldPeakF<Ifon<SwingSpeed<400>,Int<0>>,Int<150>,Int<32000>>,Int<8000>>,Int<32000>>>,Int<30000>,Int<3000>>,Int<-1200>,Int<-4000>>,RgbArg<SWING_COLOR_ARG,Rgb<255,0,255>>,Mix<Int<16384>,Black,RgbArg<SWING_COLOR_ARG,Rgb<255,0,255>>>,Mix<Int<16384>,RgbArg<SWING_COLOR_ARG,Rgb<255,0,255>>,White>>,Int<50>>,SmoothStep<IncrementWithReset<Scale<IsGreaterThan<HoldPeakF<Ifon<SwingSpeed<400>,Int<0>>,Int<150>,Int<32000>>,Int<18000>>,Int<0>,ThresholdPulseF<StrobeF<Scale<HoldPeakF<Ifon<SwingAcceleration<>,Int<0>>,Int<150>,Int<32000>>,Int<20>,Int<200>>,Int<1>>,Int<32000>>>,ThresholdPulseF<IsLessThan<HoldPeakF<Ifon<SwingSpeed<400>,Int<0>>,Int<150>,Int<32000>>,Int<8000>>,Int<32000>>,Int<42000>,Int<1500>>,Int<-8000>>>,TransitionEffectL<TrConcat<TrJoin<TrDelayX<WavLen<>>,TrWipeIn<200>>,AlphaL<AudioFlickerL<RgbArg<STAB_COLOR_ARG,Rgb<255,255,255>>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<2000>>>,TrWipe<200>>,EFFECT_STAB>,TransitionEffectL<TrConcat<TrInstant,AlphaMixL<Bump<Scale<BladeAngle<>,Int<28000>,Int<8000>>,Int<14000>>,RgbArg<BLAST_COLOR_ARG,Rgb<255,0,75>>,Mix<Int<16384>,Black,RgbArg<BLAST_COLOR_ARG,Rgb<255,0,75>>>>,TrFade<300>>,EFFECT_BLAST>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-10000>>>,Scale<ClashImpactF<>,Int<12000>,Int<60000>>>>,TrFadeX<Scale<ClashImpactF<>,Int<200>,Int<400>>>>,EFFECT_CLASH>,LockupTrL<TransitionEffect<AlphaMixL<Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>,BrownNoiseFlickerL<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Int<200>>,StripesX<Int<1800>,Scale<NoisySoundLevel,Int<-3500>,Int<-5000>>,Mix<Int<6425>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12850>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>>,AlphaL<AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<10280>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-10000>>>,Int<13000>>>,TrJoin<TrDelay<8000>,TrInstant>,TrFade<3000>,EFFECT_LOCKUP_BEGIN>,TrConcat<TrJoin<TrDelay<50>,TrInstant>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,AlphaL<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-10000>>>,Scale<ClashImpactF<>,Int<20000>,Int<60000>>>>>,TrFade<300>>,TrConcat<TrInstant,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,LockupTrL<Stripes<3000,-2000,RandomBlink<30000,Strobe<Rgb<125,125,225>,RgbArg<LB_COLOR_ARG,Rgb<255,0,75>>,50,1>,Rgb<75,75,150>>,RandomPerLEDFlicker<Rgb<20,20,100>,Rgb<100,100,150>>>,TrWipe<200>,TrWipe<200>,SaberBase::LOCKUP_LIGHTNING_BLOCK>,LockupTrL<AlphaL<RandomPerLEDFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,0,75>>>,SmoothStep<IntArg<DRAG_SIZE_ARG,28237>,Int<3000>>>,TrConcat<TrJoin<TrDelay<4000>,TrWipeIn<200>>,AlphaL<BrownNoiseFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,0,75>>,Int<300>>,SmoothStep<IntArg<DRAG_SIZE_ARG,28237>,Int<3000>>>,TrFade<4000>>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Remap<Scale<RampF,Int<65536>,Int<0>>,StaticFire<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>>,Mix<TwistAngle<>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>,RotateColorsX<Int<3000>,Mix<Int<12000>,Black,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>>>,0,3,5,3000,10>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<4000>>>,TrConcat<TrWipeIn<100>,AlphaL<RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<4000>>>,TrJoin<TrDelay<4000>,TrFade<300>>,AlphaL<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<4000>>>,TrFade<4000>>,TrWipe<200>,SaberBase::LOCKUP_MELT>,InOutTrL<TrConcat<TrWipeInX<Mult<IgnitionTime<1000>,Int<6553>>>,RandomBlink<30000,RgbArg<IGNITION_COLOR_ARG,Rgb<255,255,255>>,Black>,TrJoin<TrDelayX<Mult<IgnitionTime<1000>,Int<19660>>>,TrWipeInX<Mult<IgnitionTime<230>,Int<6553>>>>,Mix<SmoothStep<Scale<SlowNoise<Int<30000>>,IntArg<EMITTER_SIZE_ARG,1000>,Sum<Int<5000>,IntArg<EMITTER_SIZE_ARG,1000>>>,Int<-3000>>,Black,RgbArg<IGNITION_COLOR_ARG,Rgb<255,255,255>>>,TrWipeX<Mult<IgnitionTime<1000>,Int<19660>>>>,TrConcat<TrJoin<TrDelayX<Mult<RetractionTime<0>,Int<16384>>>,TrWipeInX<Mult<RetractionTime<0>,Int<16384>>>>,Mix<SmoothStep<NoisySoundLevel,Int<-1>>,Black,RgbArg<RETRACTION_COLOR_ARG,Rgb<255,255,255>>>,TrWipeInX<Mult<RetractionTime<0>,Int<16384>>>>,Black>,TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Mult<Int<16384>,WavLen<EFFECT_PREON>>,Mult<Int<10922>,WavLen<EFFECT_PREON>>,Mult<Int<5462>,WavLen<EFFECT_PREON>>>,BrownNoiseFlicker<Black,RgbArg<PREON_COLOR_ARG,Rgb<255,255,255>>,100>,RandomPerLEDFlicker<RgbArg<PREON_COLOR_ARG,Rgb<255,255,255>>,Rgb<50,50,50>>,BrownNoiseFlicker<Mix<NoisySoundLevel,RgbArg<PREON_COLOR_ARG,Rgb<255,255,255>>,RotateColorsX<Int<4000>,RgbArg<PREON_COLOR_ARG,Rgb<255,255,255>>>>,White,50>>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelayX<WavLen<EFFECT_PREON>>>,EFFECT_PREON>>>(),

/* copyright Fett263 CustomBlade (Primary Blade) OS6 Style
https://fett263.com/fett263-proffieOS6-style-library.html#CustomBlade
OS6.7 v4.020
Single Style
Color Blend (Erratic)
Default: Shock Baton
1: ElectroStaff

Base Color: Rgb<0,0,255> (0)

--Effects Included--
Preon Effect: Faulty Ignition (PreOn Color)
Ignition Effect: Lightning Strike
Retraction Effect: Glitch Off
Lockup Effect: Intensity Lockup V1, Begin Effect: Real Clash, End Effect: Full Blade Absorb
LightningBlock Effect: Force Lightning
Drag Effect: Intensity Sparking Drag
Melt Effect: Intensity Melt
Stab Effect: AudioFlicker Stab
Blast Effect: Responsive Blast Fade (Large)
Clash Effect: Responsive Clash
Swing Effect: Lightning Swing
*/
StylePtr<Layers<Mix<Scale<SlowNoise<Int<1500>>,Int<0>,Int<20000>>,BrownNoiseFlicker<BrownNoiseFlicker<RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>,Black,300>,Stripes<3000,-4000,Rgb<50,50,75>,Rgb<100,100,150>,Rgb<10,10,15>,Rgb<150,150,225>>,200>,StaticFire<Strobe<RgbArg<BASE_COLOR_ARG,Rgb<255,0,0>>,Strobe<Rgb<100,100,150>,RandomPerLEDFlicker<RgbArg<BASE_COLOR_ARG,Rgb<255,0,0>>,Black>,50,1>,100,1>,Mix<Int<6425>,Black,RgbArg<BASE_COLOR_ARG,Rgb<255,0,0>>>,0,5,2,1000,5>>,AlphaL<BrownNoiseFlickerL<StripesX<Int<2600>,Scale<IncrementWithReset<ThresholdPulseF<StrobeF<Int<6>,Int<1>>,Int<32000>>,ThresholdPulseF<ThresholdPulseF<IsLessThan<HoldPeakF<Ifon<SwingSpeed<400>,Int<0>>,Int<150>,Int<32000>>,Int<8000>>,Int<32000>>>,Int<30000>,Int<3000>>,Int<-1200>,Int<-4000>>,RgbArg<SWING_COLOR_ARG,Rgb<255,0,255>>,Mix<Int<16384>,Black,RgbArg<SWING_COLOR_ARG,Rgb<255,0,255>>>,Mix<Int<16384>,RgbArg<SWING_COLOR_ARG,Rgb<255,0,255>>,White>>,Int<50>>,SmoothStep<IncrementWithReset<Scale<IsGreaterThan<HoldPeakF<Ifon<SwingSpeed<400>,Int<0>>,Int<150>,Int<32000>>,Int<18000>>,Int<0>,ThresholdPulseF<StrobeF<Scale<HoldPeakF<Ifon<SwingAcceleration<>,Int<0>>,Int<150>,Int<32000>>,Int<20>,Int<200>>,Int<1>>,Int<32000>>>,ThresholdPulseF<IsLessThan<HoldPeakF<Ifon<SwingSpeed<400>,Int<0>>,Int<150>,Int<32000>>,Int<8000>>,Int<32000>>,Int<42000>,Int<1500>>,Int<-8000>>>,TransitionEffectL<TrConcat<TrJoin<TrDelayX<WavLen<>>,TrWipeIn<200>>,AlphaL<AudioFlickerL<RgbArg<STAB_COLOR_ARG,Rgb<255,255,255>>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<2000>>>,TrWipe<200>>,EFFECT_STAB>,TransitionEffectL<TrConcat<TrInstant,AlphaMixL<Bump<Scale<BladeAngle<>,Int<28000>,Int<8000>>,Int<14000>>,RgbArg<BLAST_COLOR_ARG,Rgb<255,0,75>>,Mix<Int<16384>,Black,RgbArg<BLAST_COLOR_ARG,Rgb<255,0,75>>>>,TrFade<300>>,EFFECT_BLAST>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-10000>>>,Scale<ClashImpactF<>,Int<12000>,Int<60000>>>>,TrFadeX<Scale<ClashImpactF<>,Int<200>,Int<400>>>>,EFFECT_CLASH>,LockupTrL<TransitionEffect<AlphaMixL<Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>,BrownNoiseFlickerL<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Int<200>>,StripesX<Int<1800>,Scale<NoisySoundLevel,Int<-3500>,Int<-5000>>,Mix<Int<6425>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12850>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>>,AlphaL<AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<10280>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-10000>>>,Int<13000>>>,TrJoin<TrDelay<8000>,TrInstant>,TrFade<3000>,EFFECT_LOCKUP_BEGIN>,TrConcat<TrJoin<TrDelay<50>,TrInstant>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,AlphaL<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,22889>,Int<-10000>>>,Scale<ClashImpactF<>,Int<20000>,Int<60000>>>>>,TrFade<300>>,TrConcat<TrInstant,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,LockupTrL<Stripes<3000,-2000,RandomBlink<30000,Strobe<Rgb<125,125,225>,RgbArg<LB_COLOR_ARG,Rgb<255,0,75>>,50,1>,Rgb<75,75,150>>,RandomPerLEDFlicker<Rgb<20,20,100>,Rgb<100,100,150>>>,TrWipe<200>,TrWipe<200>,SaberBase::LOCKUP_LIGHTNING_BLOCK>,LockupTrL<AlphaL<RandomPerLEDFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,0,75>>>,SmoothStep<IntArg<DRAG_SIZE_ARG,28237>,Int<3000>>>,TrConcat<TrJoin<TrDelay<4000>,TrWipeIn<200>>,AlphaL<BrownNoiseFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,0,75>>,Int<300>>,SmoothStep<IntArg<DRAG_SIZE_ARG,28237>,Int<3000>>>,TrFade<4000>>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Remap<Scale<RampF,Int<65536>,Int<0>>,StaticFire<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>>,Mix<TwistAngle<>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>,RotateColorsX<Int<3000>,Mix<Int<12000>,Black,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>>>,0,3,5,3000,10>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<4000>>>,TrConcat<TrWipeIn<100>,AlphaL<RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<4000>>>,TrJoin<TrDelay<4000>,TrFade<300>>,AlphaL<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<4000>>>,TrFade<4000>>,TrWipe<200>,SaberBase::LOCKUP_MELT>,InOutTrL<TrConcat<TrWipeInX<Mult<IgnitionTime<1000>,Int<6553>>>,RandomBlink<30000,RgbArg<IGNITION_COLOR_ARG,Rgb<255,255,255>>,Black>,TrJoin<TrDelayX<Mult<IgnitionTime<1000>,Int<19660>>>,TrWipeInX<Mult<IgnitionTime<230>,Int<6553>>>>,Mix<SmoothStep<Scale<SlowNoise<Int<30000>>,IntArg<EMITTER_SIZE_ARG,1000>,Sum<Int<5000>,IntArg<EMITTER_SIZE_ARG,1000>>>,Int<-3000>>,Black,RgbArg<IGNITION_COLOR_ARG,Rgb<255,255,255>>>,TrWipeX<Mult<IgnitionTime<1000>,Int<19660>>>>,TrConcat<TrJoin<TrDelayX<Mult<RetractionTime<0>,Int<16384>>>,TrWipeInX<Mult<RetractionTime<0>,Int<16384>>>>,Mix<SmoothStep<NoisySoundLevel,Int<-1>>,Black,RgbArg<RETRACTION_COLOR_ARG,Rgb<255,255,255>>>,TrWipeInX<Mult<RetractionTime<0>,Int<16384>>>>,Black>,TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Mult<Int<16384>,WavLen<EFFECT_PREON>>,Mult<Int<10922>,WavLen<EFFECT_PREON>>,Mult<Int<5462>,WavLen<EFFECT_PREON>>>,BrownNoiseFlicker<Black,RgbArg<PREON_COLOR_ARG,Rgb<255,255,255>>,100>,RandomPerLEDFlicker<RgbArg<PREON_COLOR_ARG,Rgb<255,255,255>>,Rgb<50,50,50>>,BrownNoiseFlicker<Mix<NoisySoundLevel,RgbArg<PREON_COLOR_ARG,Rgb<255,255,255>>,RotateColorsX<Int<4000>,RgbArg<PREON_COLOR_ARG,Rgb<255,255,255>>>>,White,50>>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelayX<WavLen<EFFECT_PREON>>>,EFFECT_PREON>>>(),
};

BladeConfig blades[] = {
 { 0,
  WS281XBladePtr<75, bladePin, Color8::GRBw, PowerPINS<bladePowerPin1, bladePowerPin2, bladePowerPin5, bladePowerPin6> >(),
  WS281XBladePtr<104, blade3Pin, Color8::GRBw, PowerPINS<bladePowerPin3, bladePowerPin5> >(),
  CONFIGARRAY(presets)}
};
#endif

Does this look correct?

[NoSloppy]

@WerdaKemir

Does this look correct?

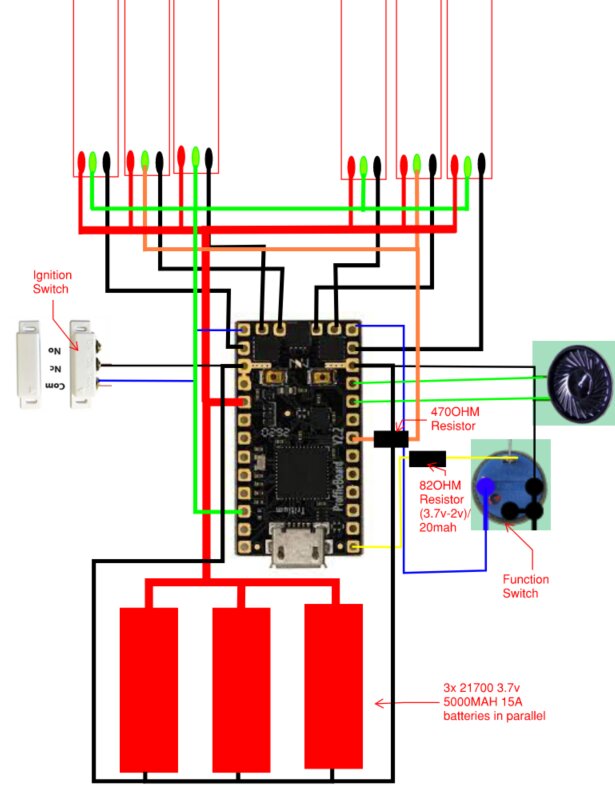

No, not quite. Based on your last wiring diagram,
your outer Blue 75 blades are wired to LED pads 1, 3, 4, and 6.
Your inner Red 104 blades are wired to 2 and 5.

Also, some syntax specifics: You’re missing the preset’s closing brace }, and you want to include the “name” argument at the end of the preset.
The post I made above is exactly how it should look.
Like this above

[WerdaKemir]

@NoSloppy

Also, some syntax specifics: You’re missing the preset’s closing brace }, and you want to include the “name” argument at the end of the preset.
The post I made above is exactly how it should look.

I changed out the styles after finding a different set. I think it will work better with the look I’m going for but left everything else the same, with the exception of pin numbers, and the Neopixel type (RGBw).

#ifdef CONFIG_PRESETS
Preset presets[] = {

{ "Ulfberhtsaber;common", "Ulfberhtsaber/tracks/ClashOfTheCrystals.wav",

/* copyright Fett263 CustomBlade (Primary Blade) OS6 Style
https://fett263.com/fett263-proffieOS6-style-library.html#CustomBlade
OS6.7 v4.020
Single Style
Dual Phase (Split Personality)
Default: ElectroStaff
1: ElectroStaff

Base Color: Rgb<0,0,255> (Gradient Wave)

--Effects Included--
Preon Effect: Faulty Ignition (Base Color)
Ignition Effect: Lightning Strike
Retraction Effect: Glitch Off
Lockup Effect: Intensity Lockup V1, Begin Effect: Real Clash, End Effect: Power Burst
LightningBlock Effect: Responsive Lightning Block
Drag Effect: Intensity Sparking Drag
Melt Effect: Intensity Melt
Stab Effect: AudioFlicker Stab
Blast Effect: Responsive Blast Fade (Large)
Clash Effect: Responsive Clash
Swing Effect: Lightning Swing
*/
StylePtr<Layers<Mix<IsLessThan<SlowNoise<Int<500>>,Int<16384>>,StaticFire<Strobe<RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>,Strobe<Rgb<100,100,150>,RandomPerLEDFlicker<RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>,Black>,50,1>,100,1>,Mix<Int<6425>,Black,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>>,0,5,2,1000,5>,StaticFire<Strobe<RgbArg<ALT_COLOR_ARG,Rgb<255,0,0>>,Strobe<Rgb<100,100,150>,RandomPerLEDFlicker<RgbArg<ALT_COLOR_ARG,Rgb<255,0,0>>,Black>,50,1>,100,1>,Mix<Int<6425>,Black,RgbArg<ALT_COLOR_ARG,Rgb<255,0,0>>>,0,5,2,1000,5>>,AlphaL<BrownNoiseFlickerL<StripesX<Int<2600>,Scale<IncrementWithReset<ThresholdPulseF<StrobeF<Int<6>,Int<1>>,Int<32000>>,ThresholdPulseF<ThresholdPulseF<IsLessThan<HoldPeakF<Ifon<SwingSpeed<400>,Int<0>>,Int<150>,Int<32000>>,Int<8000>>,Int<32000>>>,Int<30000>,Int<3000>>,Int<-1200>,Int<-4000>>,RgbArg<SWING_COLOR_ARG,Rgb<118,0,194>>,Mix<Int<16384>,Black,RgbArg<SWING_COLOR_ARG,Rgb<118,0,194>>>,Mix<Int<16384>,RgbArg<SWING_COLOR_ARG,Rgb<118,0,194>>,White>>,Int<50>>,SmoothStep<IncrementWithReset<Scale<IsGreaterThan<HoldPeakF<Ifon<SwingSpeed<400>,Int<0>>,Int<150>,Int<32000>>,Int<18000>>,Int<0>,ThresholdPulseF<StrobeF<Scale<HoldPeakF<Ifon<SwingAcceleration<>,Int<0>>,Int<150>,Int<32000>>,Int<20>,Int<200>>,Int<1>>,Int<32000>>>,ThresholdPulseF<IsLessThan<HoldPeakF<Ifon<SwingSpeed<400>,Int<0>>,Int<150>,Int<32000>>,Int<8000>>,Int<32000>>,Int<42000>,Int<1500>>,Int<-8000>>>,TransitionEffectL<TrConcat<TrJoin<TrDelayX<WavLen<>>,TrWipeIn<200>>,AlphaL<AudioFlickerL<RgbArg<STAB_COLOR_ARG,Rgb<255,255,255>>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<2000>>>,TrWipe<200>>,EFFECT_STAB>,TransitionEffectL<TrConcat<TrInstant,AlphaMixL<Bump<Scale<BladeAngle<>,Int<28000>,Int<8000>>,Int<14000>>,RgbArg<BLAST_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<16384>,Black,RgbArg<BLAST_COLOR_ARG,Rgb<255,255,255>>>>,TrFade<300>>,EFFECT_BLAST>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RgbArg<CLASH_COLOR_ARG,Rgb<255,187,108>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-10000>>>,Scale<ClashImpactF<>,Int<12000>,Int<60000>>>>,TrFadeX<Scale<ClashImpactF<>,Int<200>,Int<400>>>>,EFFECT_CLASH>,LockupTrL<TransitionEffect<AlphaMixL<Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>,BrownNoiseFlickerL<RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>,Int<200>>,StripesX<Int<1800>,Scale<NoisySoundLevel,Int<-3500>,Int<-5000>>,Mix<Int<6425>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>,Mix<Int<12850>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>>>>,AlphaL<AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>,Mix<Int<10280>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-10000>>>,Int<13000>>>,TrJoin<TrDelay<8000>,TrInstant>,TrFade<3000>,EFFECT_LOCKUP_BEGIN>,TrConcat<TrJoin<TrDelay<50>,TrInstant>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>,AlphaL<RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-10000>>>,Scale<ClashImpactF<>,Int<20000>,Int<60000>>>>>,TrFade<300>>,TrConcat<TrCenterWipeX<Int<150>,Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-10000>>>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>,TrJoin<TrCenterWipeX<Int<150>,Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-10000>>>>,TrSmoothFade<150>>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,AudioFlicker<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Blue>,50,1>,TrConcat<TrInstant,AlphaL<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Int<16000>>,30>,TrSmoothFade<600>>>,LockupTrL<AlphaL<RandomPerLEDFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>>,SmoothStep<IntArg<DRAG_SIZE_ARG,28000>,Int<3000>>>,TrConcat<TrJoin<TrDelay<4000>,TrWipeIn<200>>,AlphaL<BrownNoiseFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>,Int<300>>,SmoothStep<IntArg<DRAG_SIZE_ARG,28000>,Int<3000>>>,TrFade<4000>>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Remap<Scale<RampF,Int<65536>,Int<0>>,StaticFire<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>>,Mix<TwistAngle<>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>,RotateColorsX<Int<3000>,Mix<Int<12000>,Black,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>>>,0,3,5,3000,10>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<4000>>>,TrConcat<TrWipeIn<100>,AlphaL<RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<4000>>>,TrJoin<TrDelay<4000>,TrFade<300>>,AlphaL<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<4000>>>,TrFade<4000>>,TrWipe<200>,SaberBase::LOCKUP_MELT>,InOutTrL<TrConcat<TrWipeInX<Mult<IgnitionTime<1000>,Int<6553>>>,RandomBlink<30000,RgbArg<IGNITION_COLOR_ARG,Rgb<255,255,255>>,Black>,TrJoin<TrDelayX<Mult<IgnitionTime<1000>,Int<19660>>>,TrWipeInX<Mult<IgnitionTime<230>,Int<6553>>>>,Mix<SmoothStep<Scale<SlowNoise<Int<30000>>,IntArg<EMITTER_SIZE_ARG,1000>,Sum<Int<5000>,IntArg<EMITTER_SIZE_ARG,1000>>>,Int<-3000>>,Black,RgbArg<IGNITION_COLOR_ARG,Rgb<255,255,255>>>,TrWipeX<Mult<IgnitionTime<1000>,Int<19660>>>>,TrConcat<TrJoin<TrDelayX<Mult<RetractionTime<0>,Int<16384>>>,TrWipeInX<Mult<RetractionTime<0>,Int<16384>>>>,Mix<SmoothStep<NoisySoundLevel,Int<-1>>,Black,RgbArg<RETRACTION_COLOR_ARG,Rgb<255,255,255>>>,TrWipeInX<Mult<RetractionTime<0>,Int<16384>>>>,Black>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RandomPerLEDFlicker<Gradient<RotateColorsX<Scale<Sin<Int<100>>,Int<0>,Int<10272>>,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>>,RotateColorsX<Scale<Sin<Int<100>>,Int<10272>,Int<0>>,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>>>,Black>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelayX<WavLen<EFFECT_PREON>>>,EFFECT_PREON>>>(),

/* copyright Fett263 CustomBlade (Primary Blade) OS6 Style
https://fett263.com/fett263-proffieOS6-style-library.html#CustomBlade
OS6.7 v4.020
Single Style
Dual Phase (Split Personality)
Default: ElectroStaff
1: Shock Baton

Base Color: Rgb<0,0,255> (Gradient Wave)

--Effects Included--
Preon Effect: Faulty Ignition (Base Color)
Ignition Effect: Lightning Strike
Retraction Effect: Glitch Off
Lockup Effect: Intensity Lockup V1, Begin Effect: Real Clash, End Effect: Power Burst
LightningBlock Effect: Responsive Lightning Block
Drag Effect: Intensity Sparking Drag
Melt Effect: Intensity Melt
Stab Effect: AudioFlicker Stab
Blast Effect: Responsive Blast Fade (Large)
Clash Effect: Responsive Clash
Swing Effect: Lightning Swing
*/
StylePtr<Layers<Mix<IsLessThan<SlowNoise<Int<500>>,Int<16384>>,StaticFire<Strobe<RgbArg<BASE_COLOR_ARG,Rgb<255,0,0>>,Strobe<Rgb<100,100,150>,RandomPerLEDFlicker<RgbArg<BASE_COLOR_ARG,Rgb<255,0,0>>,Black>,50,1>,100,1>,Mix<Int<6425>,Black,RgbArg<BASE_COLOR_ARG,Rgb<255,0,0>>>,0,5,2,1000,5>,BrownNoiseFlicker<BrownNoiseFlicker<RgbArg<ALT_COLOR_ARG,Rgb<0,0,255>>,Black,300>,Stripes<3000,-4000,Rgb<50,50,75>,Rgb<100,100,150>,Rgb<10,10,15>,Rgb<150,150,225>>,200>>,AlphaL<BrownNoiseFlickerL<StripesX<Int<2600>,Scale<IncrementWithReset<ThresholdPulseF<StrobeF<Int<6>,Int<1>>,Int<32000>>,ThresholdPulseF<ThresholdPulseF<IsLessThan<HoldPeakF<Ifon<SwingSpeed<400>,Int<0>>,Int<150>,Int<32000>>,Int<8000>>,Int<32000>>>,Int<30000>,Int<3000>>,Int<-1200>,Int<-4000>>,RgbArg<SWING_COLOR_ARG,Rgb<118,0,194>>,Mix<Int<16384>,Black,RgbArg<SWING_COLOR_ARG,Rgb<118,0,194>>>,Mix<Int<16384>,RgbArg<SWING_COLOR_ARG,Rgb<118,0,194>>,White>>,Int<50>>,SmoothStep<IncrementWithReset<Scale<IsGreaterThan<HoldPeakF<Ifon<SwingSpeed<400>,Int<0>>,Int<150>,Int<32000>>,Int<18000>>,Int<0>,ThresholdPulseF<StrobeF<Scale<HoldPeakF<Ifon<SwingAcceleration<>,Int<0>>,Int<150>,Int<32000>>,Int<20>,Int<200>>,Int<1>>,Int<32000>>>,ThresholdPulseF<IsLessThan<HoldPeakF<Ifon<SwingSpeed<400>,Int<0>>,Int<150>,Int<32000>>,Int<8000>>,Int<32000>>,Int<42000>,Int<1500>>,Int<-8000>>>,TransitionEffectL<TrConcat<TrJoin<TrDelayX<WavLen<>>,TrWipeIn<200>>,AlphaL<AudioFlickerL<RgbArg<STAB_COLOR_ARG,Rgb<255,255,255>>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<2000>>>,TrWipe<200>>,EFFECT_STAB>,TransitionEffectL<TrConcat<TrInstant,AlphaMixL<Bump<Scale<BladeAngle<>,Int<28000>,Int<8000>>,Int<14000>>,RgbArg<BLAST_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<16384>,Black,RgbArg<BLAST_COLOR_ARG,Rgb<255,255,255>>>>,TrFade<300>>,EFFECT_BLAST>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RgbArg<CLASH_COLOR_ARG,Rgb<255,187,108>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-10000>>>,Scale<ClashImpactF<>,Int<12000>,Int<60000>>>>,TrFadeX<Scale<ClashImpactF<>,Int<200>,Int<400>>>>,EFFECT_CLASH>,LockupTrL<TransitionEffect<AlphaMixL<Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>,BrownNoiseFlickerL<RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>,Int<200>>,StripesX<Int<1800>,Scale<NoisySoundLevel,Int<-3500>,Int<-5000>>,Mix<Int<6425>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>,Mix<Int<12850>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>>>>,AlphaL<AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>,Mix<Int<10280>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-10000>>>,Int<13000>>>,TrJoin<TrDelay<8000>,TrInstant>,TrFade<3000>,EFFECT_LOCKUP_BEGIN>,TrConcat<TrJoin<TrDelay<50>,TrInstant>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>,AlphaL<RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-10000>>>,Scale<ClashImpactF<>,Int<20000>,Int<60000>>>>>,TrFade<300>>,TrConcat<TrCenterWipeX<Int<150>,Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-10000>>>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<118,0,194>>,TrJoin<TrCenterWipeX<Int<150>,Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,23774>,Int<-10000>>>>,TrSmoothFade<150>>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,AudioFlicker<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Blue>,50,1>,TrConcat<TrInstant,AlphaL<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Int<16000>>,30>,TrSmoothFade<600>>>,LockupTrL<AlphaL<RandomPerLEDFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>>,SmoothStep<IntArg<DRAG_SIZE_ARG,28000>,Int<3000>>>,TrConcat<TrJoin<TrDelay<4000>,TrWipeIn<200>>,AlphaL<BrownNoiseFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>,Int<300>>,SmoothStep<IntArg<DRAG_SIZE_ARG,28000>,Int<3000>>>,TrFade<4000>>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Remap<Scale<RampF,Int<65536>,Int<0>>,StaticFire<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>>,Mix<TwistAngle<>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>,RotateColorsX<Int<3000>,Mix<Int<12000>,Black,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>>>,0,3,5,3000,10>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<4000>>>,TrConcat<TrWipeIn<100>,AlphaL<RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<4000>>>,TrJoin<TrDelay<4000>,TrFade<300>>,AlphaL<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,24,0>>>>,SmoothStep<IntArg<MELT_SIZE_ARG,28000>,Int<4000>>>,TrFade<4000>>,TrWipe<200>,SaberBase::LOCKUP_MELT>,InOutTrL<TrConcat<TrWipeInX<Mult<IgnitionTime<1000>,Int<6553>>>,RandomBlink<30000,RgbArg<IGNITION_COLOR_ARG,Rgb<255,255,255>>,Black>,TrJoin<TrDelayX<Mult<IgnitionTime<1000>,Int<19660>>>,TrWipeInX<Mult<IgnitionTime<230>,Int<6553>>>>,Mix<SmoothStep<Scale<SlowNoise<Int<30000>>,IntArg<EMITTER_SIZE_ARG,1000>,Sum<Int<5000>,IntArg<EMITTER_SIZE_ARG,1000>>>,Int<-3000>>,Black,RgbArg<IGNITION_COLOR_ARG,Rgb<255,255,255>>>,TrWipeX<Mult<IgnitionTime<1000>,Int<19660>>>>,TrConcat<TrJoin<TrDelayX<Mult<RetractionTime<0>,Int<16384>>>,TrWipeInX<Mult<RetractionTime<0>,Int<16384>>>>,Mix<SmoothStep<NoisySoundLevel,Int<-1>>,Black,RgbArg<RETRACTION_COLOR_ARG,Rgb<255,255,255>>>,TrWipeInX<Mult<RetractionTime<0>,Int<16384>>>>,Black>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RandomPerLEDFlicker<Gradient<RotateColorsX<Scale<Sin<Int<100>>,Int<0>,Int<10272>>,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>>,RotateColorsX<Scale<Sin<Int<100>>,Int<10272>,Int<0>>,RgbArg<BASE_COLOR_ARG,Rgb<0,0,255>>>>,Black>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelayX<WavLen<EFFECT_PREON>>>,EFFECT_PREON>>>(),"blue edges"}
};

BladeConfig blades[] = {
 { 0,
  WS281XBladePtr<75, bladePin, Color8::GRBw, PowerPINS<bladePowerPin1, bladePowerPin2, bladePowerPin5, bladePowerPin6> >(),
  WS281XBladePtr<104, blade3Pin, Color8::GRBw, PowerPINS<bladePowerPin3, bladePowerPin4> >(),
  CONFIGARRAY(presets)}
};
#endif

@NoSloppy

No, not quite. Based on your last wiring diagram,
your outer Blue 75 blades are wired to LED pads 1, 3, 4, and 6.
Your inner Red 104 blades are wired to 2 and 5.

That’s my fault, I had changed it up a little since the last pic.

[WerdaKemir]

[NoSloppy]

@WerdaKemir

That’s my fault, I had changed it up a little since the last pic.

Ah. Then it’s correct in your version, yes.
I might suggest a more visible blaster block effect on that very busy blade.
Maybe test swapping your EFFECT_BLAST layer with something like
AlphaL<RgbArg<BLAST_COLOR_ARG,White>,OriginalBlastF<>>

[WerdaKemir]

@NoSloppy

AlphaL<RgbArg<BLAST_COLOR_ARG,White>,OriginalBlastF<>>

I changed the blast to white in the second round. Everything is white with the exception of the preon now, I think lol.

[WerdaKemir]

@NoSloppy

Ah. Then it’s correct in your version, yes.
I might suggest a more visible blaster block effect on that very busy blade.
Maybe test swapping your EFFECT_BLAST layer with something like

What I’m having issues with now is adding the sound fonts and how to config the style. I don’t have access to an h file creator (except an online version). and I still have no idea what I am doing to create my own config.

[NoSloppy]

@WerdaKemir

What I’m having issues with now is adding the sound fonts and how to config the style. … I still have no idea what I am doing to create my own config.

Well, start here:

The Config File

Working from the bottom up:
You already have the BladeConfig, which is the “hardest” part for most users.
You also already have the rest of the CONFIG_PRESETS part, you’re just going to add more presets with different font, track, and blade styles if you want.

You should choose a prop file to use that will dictate how your buttons and gestures of the saber control the experience.
There’s info on the documentation site for that info as well, in addition to the prop files themselves having instructions of how they work provided in the top comments section of the file.

Most of the #defines to use or omit in the CONFIG_TOP section will be determined on which prop file you choose, while others are system-wide options.

It comes down to personalization. Build the config based on what you want it to do after exploring the available options.

That’s how to build a config file.

@WerdaKemir

I don’t have access to an h file creator

It’s just a text file, however to avoid weird formatting and other potential syntax errors, the editor should be one that is code savvy.
I suggest using https://www.sublimetext.com/

[WerdaKemir]

I am at the limit of my abilities now. I am trying to build a custom sound font folder, with my custom sounds for the different functions. I have searched for how to build them with no avail. I have the wav files, I just don’t know how to properly label them and how to where to add them inside the proffieos.

[WerdaKemir]

What I am doing right now is taking a sound font I downloaded offline, adding my stuff and deleting the others, while renaming my stuff to match. hopefully this is right.

[NoSloppy]

@WerdaKemir

I am at the limit of my abilities now. I am trying to build a custom sound font folder, with my custom sounds for the different functions. I have searched for how to build them with no avail. I have the wav files, I just don’t know how to properly label them and how to where to add them inside the proffieos.

Here’s info on sound font including what names are used and the config.ini variables and uses:

Sound pages

And yes, a good start would be just looking at an existing font and mimic it.
Sounds with multiples should go in a subfolder named the sound.
Single sounds should stay right in the font root.

[WerdaKemir]

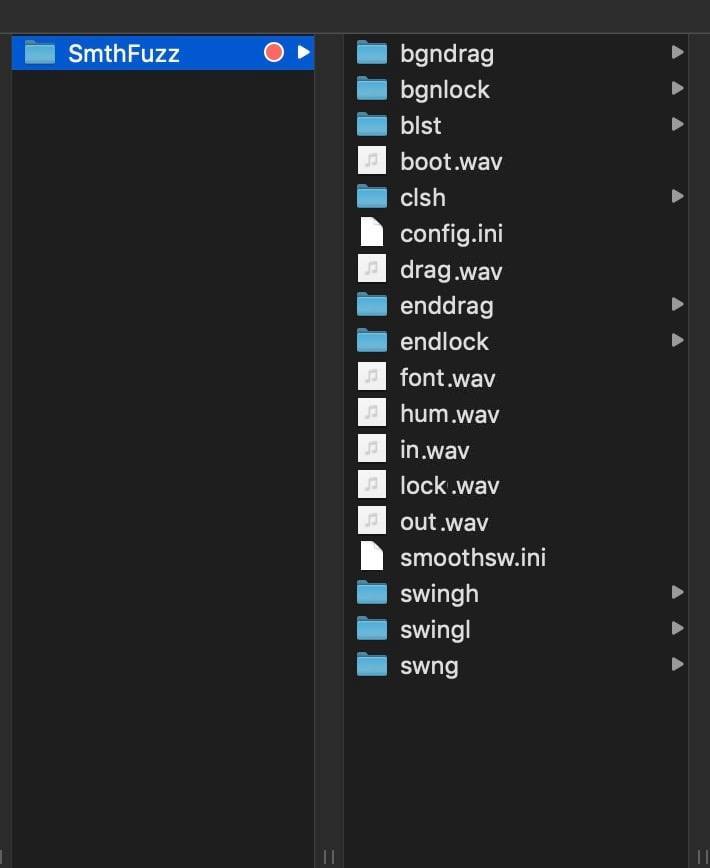

This is what I have, and I have added my stuff and relabled it. The next question is where do I drop it on the OS files? Or is the file its own thing with in the SD card?

I also have my common folder made up for the tracks and what not. does that just get dumped into the common on the OS?
