First Config with styles upload

Lighten · June 7, 2023, 10:39pm

Proffie noob here!

I had to mess with this config ALOT after trying to add 2 styles.

One that I bought from Greyscale fonts had all kinds of errors when pasting it in and then one from Fett’s styles generator that also seemed to be missing ending arguments.

I somehow stumbled through making edits and trial and error compiling and got it to be error free and upload but I am still skeptical.

If anyone with mad knowledge feels like taking the time to check my config I would be very grateful! I’m sure its messy!

// ProffieOS7 Config File
#ifdef CONFIG_TOP
#include "proffieboard_v3_config.h"
#define NUM_BLADES 5
#define NUM_BUTTONS 2
const unsigned int maxLedsPerStrip = 144;
#define VOLUME 1000
#define BOOT_VOLUME 80
#define CLASH_THRESHOLD_G 3
#define ENABLE_AUDIO
#define ENABLE_MOTION
#define ENABLE_WS2811
#define ENABLE_SD
#define KILL_OLD_PLAYERS
#define FILTER_CUTOFF_FREQUENCY 100
#define FILTER_ORDER 8
#define MOTION_TIMEOUT 60 * 15 * 1000
#define IDLE_OFF_TIME 60 * 15 * 1000
#define DISABLE_BASIC_PARSER_STYLES
#define DISABLE_DIAGNOSTIC_COMMANDS
#define ENABLE_ALL_EDIT_OPTIONS
#define SAVE_PRESET
#define NO_REPEAT_RANDOM
#define COLOR_CHANGE_DIRECT
#define FETT263_EDIT_MODE_MENU
#define FETT263_DUAL_MODE_SOUND
#define FETT263_CLASH_STRENGTH_SOUND
#define FETT263_MAX_CLASH 10
#define FETT263_SAY_COLOR_LIST
#define FETT263_SAY_COLOR_LIST_CC
#define FETT263_SAY_BATTERY_PERCENT
#define FETT263_HOLD_BUTTON_OFF
#define FETT263_HOLD_BUTTON_LOCKUP
#define FETT263_LOCKUP_DELAY 200
#define FETT263_BM_CLASH_DETECT 6
#endif

#ifdef CONFIG_PROP
#include "../props/saber_fett263_buttons.h"
#endif


#ifdef CONFIG_PRESETS

Preset presets[] = {
{ "Protostar",  "common/tracks/venus.wav",
//{ Protostar;common, common/tracks/venus.wav,
	StylePtr<Layers<

  //Base Fett263 Dark Orange Audioflicker
  AudioFlicker<RotateColorsX<Variation,DarkOrange>,RotateColorsX<Variation,Rgb<128,34,0>>>,

  //Unstable Orange-Red Audioflicker Swing Effect
  AlphaL<AudioFlicker<BrownNoiseFlicker<RotateColorsX<Variation,OrangeRed>,Black,300>,RotateColorsX<Variation,Orange>>,SwingSpeed<285>>,

  //Fett263 Bright Ripple Hard Swing
  AlphaL<Stripes<2000,-3250,RotateColorsX<Variation,Orange>,RotateColorsX<Variation,Rgb<60,36,0>>,Pulsing<RotateColorsX<Variation,Rgb<30,17,0>>,Black,800>>,Scale<IsLessThan<SwingSpeed<675>,Int<13600>>,Scale<SwingSpeed<675>,Int<-19300>,Int<32768>>,Int<0>>>,

  //Fett263 Bright Sparking Emitter Flare
  AlphaL<RotateColorsX<Variation,Rgb16<65535,52226,0>>,SmoothStep<Scale<SlowNoise<Int<2500>>,Int<1500>,Int<4500>>,Int<-6000>>>,

  //Fett263 Responsive Intensity Lockup
  LockupTrL<AlphaMixL<Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>,BrownNoiseFlickerL<RgbArg<LOCKUP_COLOR_ARG,White>,Int<200>>,StripesX<Int<1800>,Scale<NoisySoundLevel,Int<-3500>,Int<-5000>>,Mix<Int<6425>,Black,RgbArg<LOCKUP_COLOR_ARG,White>>,RgbArg<LOCKUP_COLOR_ARG,White>,Mix<Int<12850>,Black,RgbArg<LOCKUP_COLOR_ARG,White>>>>,
  TrConcat<TrExtend<50,TrInstant>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,RgbArg<LOCKUP_COLOR_ARG,White>,AlphaL<RgbArg<LOCKUP_COLOR_ARG,White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<20000>,Int<60000>>>>>,TrExtend<3000,TrFade<300>>,AlphaL<AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,White>,Mix<Int<10280>,Black,RgbArg<LOCKUP_COLOR_ARG,White>>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Int<13000>>>,TrFade<3000>>,
  TrConcat<TrInstant,RgbArg<LOCKUP_COLOR_ARG,White>,TrFade<1950>>,SaberBase::LOCKUP_NORMAL>,

  //Fett263 Responsive Lightning Block
  ResponsiveLightningBlockL<Strobe<RgbArg<LB_COLOR_ARG,White>,AudioFlicker<RgbArg<LB_COLOR_ARG,White>,Blue>,50,1>,TrConcat<TrInstant,AlphaL<RgbArg<LB_COLOR_ARG,White>,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<RgbArg<LB_COLOR_ARG,White>,Int<16000>>,30>,TrSmoothFade<600>>>,

  //Responsive Stab
  ResponsiveStabL<AudioFlickerL<RgbArg<STAB_COLOR_ARG,Yellow>>,TrWipeInX<Percentage<WavLen<EFFECT_STAB>,50>>,TrFadeX<Percentage<WavLen<EFFECT_STAB>,50>>>,

  //Fett263 Multi-blast, blaster reflect cycles through different responsive effects
  EffectSequence<EFFECT_BLAST,ResponsiveBlastL<RgbArg<BLAST_COLOR_ARG,White>,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,LocalizedClashL<RgbArg<BLAST_COLOR_ARG,White>,80,30,EFFECT_BLAST>,ResponsiveBlastWaveL<RgbArg<BLAST_COLOR_ARG,White>,Scale<SwingSpeed<400>,Int<500>,Int<200>>,Scale<SwingSpeed<400>,Int<100>,Int<400>>>,BlastL<RgbArg<BLAST_COLOR_ARG,White>,200,200>,ResponsiveBlastFadeL<RgbArg<BLAST_COLOR_ARG,White>,Scale<SwingSpeed<400>,Int<6000>,Int<12000>>,Scale<SwingSpeed<400>,Int<400>,Int<100>>>,ResponsiveBlastL<RgbArg<BLAST_COLOR_ARG,White>,Scale<SwingSpeed<400>,Int<400>,Int<100>>,Scale<SwingSpeed<400>,Int<200>,Int<100>>,Scale<SwingSpeed<400>,Int<400>,Int<200>>>>,

  //Fett263 Real Clash
  Mix<IsLessThan<ClashImpactF<>,Int<26000>>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RgbArg<CLASH_COLOR_ARG,Rgb<255,187,108>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<12000>,Int<60000>>>>,TrFadeX<Scale<ClashImpactF<>,Int<200>,Int<400>>>>,EFFECT_CLASH>,TransitionEffectL<TrWaveX<RgbArg<CLASH_COLOR_ARG,Rgb<255,187,108>>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Int<100>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>>,EFFECT_CLASH>>,

  //Fett263 White Unstable Ignition Effect
  TransitionEffectL<TrConcat<TrInstant,Stripes<3000,-2500,White,RandomPerLEDFlicker<Rgb<60,60,60>,Black>,BrownNoiseFlicker<White,Rgb<30,30,30>,200>,RandomPerLEDFlicker<Rgb<80,80,80>,Rgb<30,30,30>>>,TrFade<2400>>,EFFECT_IGNITION>,

  //Bright Retraction Effect
  TransitionEffectL<TrConcat<TrFadeX<WavLen<EFFECT_RETRACTION>>,AudioFlickerL<RotateColorsX<Variation,Rgb16<65535,52226,0>>>,TrInstant>,EFFECT_RETRACTION>,

  //Fett263 Intensity Drag
  LockupTrL<AlphaL<RandomPerLEDFlickerL<RgbArg<DRAG_COLOR_ARG,White>>,SmoothStep<IntArg<DRAG_SIZE_ARG,27500>,Int<5000>>>,TrConcat<TrExtend<4000,TrWipeIn<200>>,AlphaL<BrownNoiseFlickerL<RgbArg<DRAG_COLOR_ARG,White>,Int<300>>,SmoothStep<IntArg<DRAG_SIZE_ARG,29250>,Int<5000>>>,TrFade<4000>>,TrFade<300>,SaberBase::LOCKUP_DRAG>,

  //Fett263 Responsive Intensity Melt
  LockupTrL<AlphaL<Remap<Scale<RampF,Int<65536>,Int<0>>,StaticFire<Mix<TwistAngle<>,OrangeRed,DarkOrange>,Mix<TwistAngle<>,OrangeRed,Orange>,0,3,5,3000,10>>,SmoothStep<IntArg<MELT_SIZE_ARG,26000>,Int<6000>>>,TrConcat<TrWipeIn<100>,AlphaL<Red,SmoothStep<Int<29000>,Int<8000>>>,TrExtend<2000,TrFade<300>>,AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<29000>,Int<8000>>>,TrFade<3000>>,TrFade<250>,SaberBase::LOCKUP_MELT>,

  //Fett263 Power Save, if using his prop file hold Aux and click PWR while ON (pointing up) to dim blade in 25% increments.
  EffectSequence<EFFECT_POWERSAVE,AlphaL<Black,Int<8192>>,AlphaL<Black,Int<16384>>,AlphaL<Black,Int<24576>>,AlphaL<Black,Int<0>>>,

  //Fett263 Dual Mode White Spark Tip Ignition and Retraction - Hold above horizontal for fast ignition or below horizontal for slow ignition.
  InOutTrL<TrJoin<TrWipeX<Scale<IsLessThan<BladeAngle<>,Int<16000>>,Percentage<WavLen<EFFECT_IGNITION>,5>,Percentage<WavLen<EFFECT_IGNITION>,50>>>,TrWaveX<White,Scale<IsLessThan<BladeAngle<>,Int<16000>>,Percentage<WavLen<EFFECT_IGNITION>,15>,Percentage<WavLen<EFFECT_IGNITION>,75>>,Int<400>,Scale<IsLessThan<BladeAngle<>,Int<16000>>,Percentage<WavLen<EFFECT_IGNITION>,5>,Percentage<WavLen<EFFECT_IGNITION>,50>>,Int<0>>>,TrJoin<TrWipeInX<WavLen<EFFECT_RETRACTION>>,TrWaveX<White,Percentage<WavLen<EFFECT_RETRACTION>,200>,Int<400>,WavLen<EFFECT_RETRACTION>,Int<32768>>>>,

  //Fett263 optional/alternate Passive Battery Monitor: on boot (1st line) or font change (2nd line) you will get a visual indicator at the emitter of your current battery level. This also works without a blade if you have a lit emitter or blade plug. Green is Full, Red is Low (the color will blend from Green to Red as the battery is depleted), the indicator will fade out after 3000 ms and not display again until powered down and back up or fonts change.
  //TransitionEffectL<TrConcat<TrDelay<1500>,Black,TrFade<1000>,AlphaL<Mix<BatteryLevel,Red,Green>,Bump<Int<0>,Int<6000>>>,TrFade<3000>>,EFFECT_BOOT>,
  //TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<BatteryLevel,Red,Green>,Bump<Int<0>,Int<6000>>>,TrFade<3000>>,EFFECT_NEWFONT>,

  //Fett263 On-Demand Battery Level: if using Fett263's prop file Hold AUX and click PWR while OFF, the battery level is represented by the location on the blade; tip = full, hilt = low and color; green = full, yellow = half, red = low
  TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<BatteryLevel,Red,Green>,Bump<BatteryLevel,Int<10000>>>,TrDelay<2000>,AlphaL<Mix<BatteryLevel,Red,Green>,Bump<BatteryLevel,Int<10000>>>,TrFade<1000>>,EFFECT_BATTERY_LEVEL>,

  //Audio responsive charge-up preon effect
  TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Percentage<WavLen<EFFECT_PREON>,33>,Percentage<WavLen<EFFECT_PREON>,34>,Percentage<WavLen<EFFECT_PREON>,33>>,StyleFire<Gradient<RotateColorsX<Variation,Rgb16<65535,11439,0>>,RotateColorsX<Variation,Orange>,RotateColorsX<Variation,DarkOrange>,RotateColorsX<Variation,Rgb16<65535,52226,0>>>,RotateColorsX<Variation,Rgb<60,30,0>>,0,1,FireConfig<0,2000,5>,FireConfig<0,2000,5>,FireConfig<0,2000,5>,FireConfig<0,2000,5>>,RandomPerLEDFlicker<RotateColorsX<Variation,Orange>,RotateColorsX<Variation,Rgb16<14386,7000,0>>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Orange>,100>>,SmoothStep<Scale<NoisySoundLevel,Int<-1000>,Int<25000>>,Int<-4000>>>,TrDelayX<WavLen<EFFECT_PREON>>>,EFFECT_PREON>,

  //Ripple-Out Preon Effect
  TransitionEffectL<TrConcat<TrDelayX<Percentage<WavLen<EFFECT_PREON>,65>>,TransitionLoopL<TrWaveX<RotateColorsX<Variation,Rgb16<65535,52226,0>>,Int<115>,Int<375>,Int<250>,Int<0>>>,TrDelayX<Percentage<WavLen<EFFECT_PREON>,35>>>,EFFECT_PREON>>>(),},

{ "Mercenary" ,"",
StylePtr<Layers<StyleFire<StripesX<Int<3000>,Scale<SlowNoise<Int<2000>>,Int<-1000>,Int<-5000>>,BrownNoiseFlicker<RotateColorsX<Variation,Red>,Black,100>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<60,0,0>>,RotateColorsX<Variation,Rgb<10,0,0>>>,RotateColorsX<Variation,Rgb<255,25,25>>,RotateColorsX<Variation,Rgb<128,0,0>>>,RotateColorsX<Variation,Rgb<80,0,0>>,0,5,FireConfig<3,3000,0>,FireConfig<3,3000,0>,FireConfig<3,3000,0>,FireConfig<3,3000,0>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Orange,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,TransitionEffectL<TrConcat<TrInstant,Stripes<3000,-3500,RotateColorsX<Variation,Rgb<255,150,150>>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<60,0,0>>,Black>,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<255,150,150>>,RotateColorsX<Variation,Rgb<60,0,0>>,200>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<128,0,0>>,RotateColorsX<Variation,Rgb<60,0,0>>>>,TrFade<1200>>,EFFECT_IGNITION>,TransitionEffectL<TrConcat<TrInstant,HumpFlickerL<RotateColorsX<Variation,Rgb<255,150,150>>,40>,TrFade<1200>>,EFFECT_RETRACTION>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Rgb<255,200,0>,DarkOrange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrConcat<TrWipe<200>,StyleFire<StripesX<Int<3000>,Scale<SlowNoise<Int<2000>>,Int<-1000>,Int<-5000>>,BrownNoiseFlicker<RotateColorsX<Variation,Red>,Black,100>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<60,0,0>>,RotateColorsX<Variation,Rgb<10,0,0>>>,RotateColorsX<Variation,Rgb<255,25,25>>,RotateColorsX<Variation,Rgb<128,0,0>>>,RotateColorsX<Variation,Rgb<80,0,0>>,0,5,FireConfig<3,3000,0>,FireConfig<3,3000,0>,FireConfig<3,3000,0>,FireConfig<3,3000,0>>,TrWipe<100>,Black,TrBoing<300,3>>,TrConcat<TrFade<2000>,DarkOrange,TrFade<2000>,Red,TrFade<2000>>,Black>,TransitionEffectL<TrConcat<TrInstant,AlphaL<White,Bump<Int<0>,Int<10000>>>,TrFade<3000>,AlphaL<Orange,Bump<Int<0>,Int<8000>>>,TrFade<3000>,AlphaL<Red,Bump<Int<0>,Int<6000>>>,TrFade<2000>>,EFFECT_RETRACTION>,TransitionEffectL<TrConcat<TrInstant,AlphaL<BrownNoiseFlickerL<RotateColorsX<Variation,Red>,Int<30>>,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,TrDelay<8000>>,EFFECT_PREON>>>()},

};

BladeConfig blades[] = {
 { 0, WS281XBladePtr<117, bladePin, Color8::GRB, PowerPINS<bladePowerPin2, bladePowerPin3> >(),
    SubBladeWithStride(0, 15, 2, WS281XBladePtr<16, blade2Pin, Color8::GRB, PowerPINS<bladePowerPin2, bladePowerPin3> >()),
    SubBladeWithStride(1, 15, 2, NULL),
    SimpleBladePtr<CreeXPE2WhiteTemplate<550>, NoLED, NoLED, NoLED, blade5Pin, -1, -1, -1>(),
    SimpleBladePtr<CreeXPE2WhiteTemplate<550>, NoLED, NoLED, NoLED, blade6Pin, -1, -1, -1>()
  , CONFIGARRAY(presets) },
};
#endif

#ifdef CONFIG_BUTTONS
Button PowerButton(BUTTON_POWER, powerButtonPin, "pow");
Button AuxButton(BUTTON_AUX, auxPin, "aux");
#endif

 /* Generated with Fett263 Config Helper v2.0 */

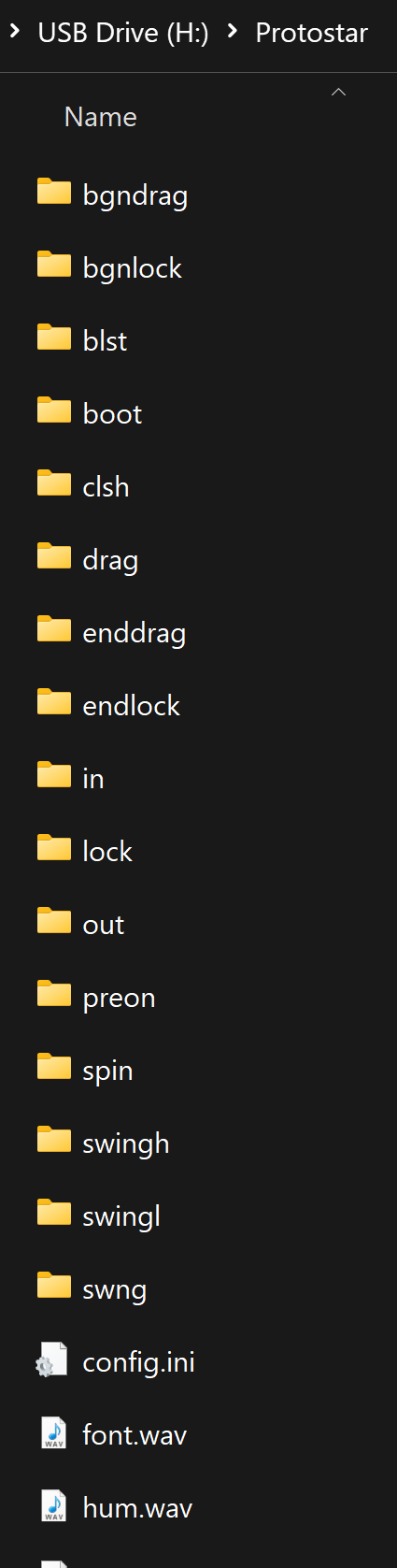

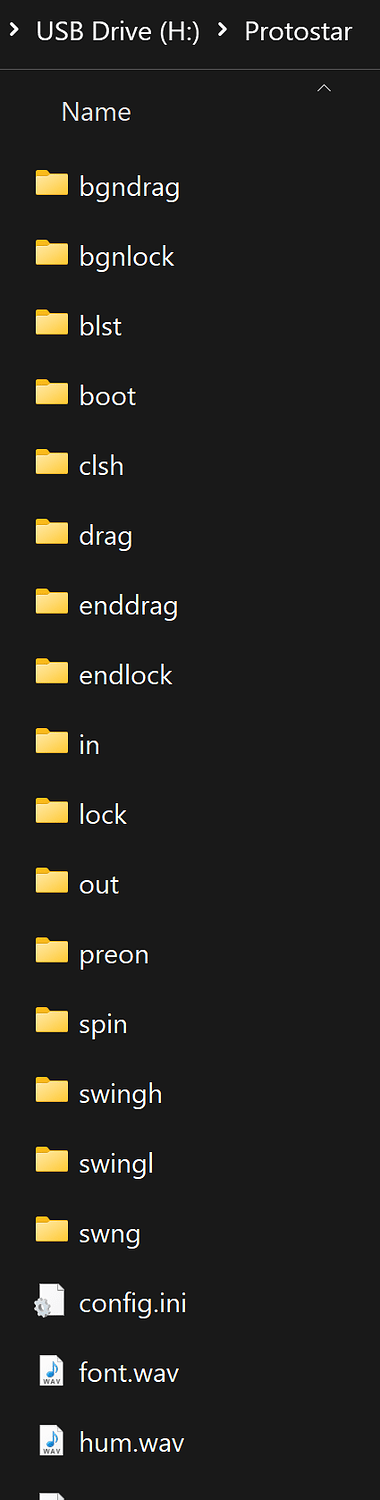

Also this is my SD card folder structure and I am not sure if this is correct?

V3.9 board OS 7.7

Root:

Inside Common folder:

Inside a style folder:

Thanks again for taking the time!

profezzorn · June 8, 2023, 3:09am

WIthout knowing how you want it to work and how your saber is wired, it’s kind of difficult to know if your config is reasonable or not. I don’t see anything obvious wrong with it at least.

Lighten · June 8, 2023, 3:31am

Ok I understand. You already confirmed the blade and button portions for me in my other post so I guess I will see how the blade responds once it’s built. Tweaking it is the part I look forward to anyways!

What about the folder structure?

The style folders are meant to be in the root and not inside common?

Ok to have the tracks folder inside common as long as I path to it in the config?

profezzorn · June 8, 2023, 3:35am

Folder structure looks reasonable.

Lighten · June 8, 2023, 3:40am

Ok thanks again for looking at it!

I hope to post some results in the builds section!

NoSloppy · June 8, 2023, 6:15am

For the future, you should not post screenshots if the text can be copied and pasted just as well.
Open Terminal, Drag your SD card to the window and hit return.
Then type ls and hit return.
copy the results list and voilà, there’s your SD card contents in text.
