FETs not turning on

ProffieOS
1

Hello, I’m working on a Saberbay Darksaber build (following these instructions), and I was testing the Proffie v3.9 board prior to install. I uploaded the included config to the board and took some measurements with a multimeter to check that everything was working as expected:

  • Battery voltage nominal (~4V, matches serial monitor)
  • GND to 5V and 3.3V pads both measured nominal (~5V, ~3.3V, respectively)
  • Batt+ to LED2, LED3, and LED4 returned near-zero voltages

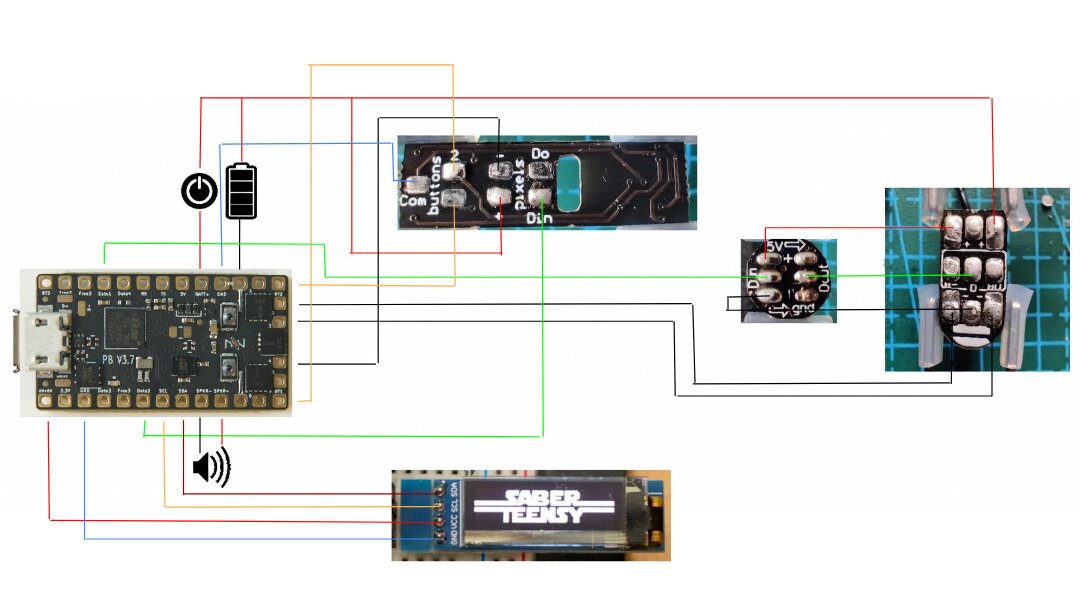

The last test is where the problem lies. From the config, I would expect these FETs to turn on, but I’m not getting the nominal ~4V. I’ve included my intended wiring diagram here as well. Notably, a single data line is used for the accent pixel and the hilt-side PCB (no LEDs, only passthrough). I used the Din and Dout pads on the accent pixel to daisy-chain the data line to the hilt-side PCB that delivers data directly to the main blade (the blade PCB has a 330 Ohm resistor on the data line). I used SubBlade in the config to mirror the wiring. The switch PCB is wired up as a npxl pcb, with it’s own pos, neg, and data lines. Does anyone see anything amiss here?

Additional note: I plan on wiring a small “2020” pixel strip as shown in the instructions, except wiring it to Batt+, LED5, and Data3 (switch PCB LEDs get power from LED4). From what I understand, it’ll be a normal WS281XBladePtr. I’ll have to add another line to the BladeConfig section, a style to each preset, and increase blade to 4 to run it. That’s separate from the issue I’m having here, but may present similar symptoms if I don’t resolve this issue.

image1087×591 77.9 KB

#ifdef CONFIG_TOP
#include "proffieboard_v3_config.h"
#define NUM_BLADES 3
#define NUM_BUTTONS 2
#define VOLUME 1200
const unsigned int maxLedsPerStrip = 144;
#define CLASH_THRESHOLD_G 1.0
#define ENABLE_AUDIO
#define ENABLE_MOTION
#define ENABLE_WS2811
#define ENABLE_SD
#define ENABLE_SSD1306
#define SHARED_POWER_PINS
#endif

//Customized Options
//Edit Mode
#define FETT263_EDIT_MODE_MENU
#define ENABLE_ALL_EDIT_OPTIONS
#define FETT263_DUAL_MODE_SOUND
//Gesture Control
#define FETT263_TWIST_ON
#define FETT263_TWIST_OFF
#define FETT263_THRUST_ON
#define FETT263_SWING_ON
//Battery
#define FETT263_SAY_BATTERY_PERCENT
#define FETT263_MULTI_PHASE
//Motion Timeout
#define MOTION_TIMEOUT 60 * 3 * 1000
#define IDLE_OFF_TIME 60 * 10 * 1000
#define FETT263_MOTION_WAKE_POWER_BUTTON
//Other
#define ORIENTATION ORIENTATION_USB_TOWARDS_BLADE
![Darksaber_wiring_diagram_v2|690x375](upload://9uXLKIfNxLvSAEzQaNsTfWSNBeK.jpeg)


//Include FETT263 Prop File
#ifdef CONFIG_PROP
#include "../props/saber_fett263_buttons.h"
#endif

#ifdef CONFIG_PRESETS


// Fire speed, valid values are 1 - 10
#define FIRE1_SPEED 2
// How long to wait before firing up crossguards.
#define FIRE1_DELAY 800

// Each of these have three values: A, B, C
// A = non-random intensity
// B = random intensity
// C = cooling
// The first two control temperature, and as we add
// A + rnd(B) to the base of the blade each animation frame.
// The second controls how rapidly the fire cools down

// This is used during normal operation.
#define FIRE1_NORMAL 0, 1000, 2

// This is used when a clash occurs
#define FIRE1_CLASH  3000, 0, 0

// This is used during lockup.
#define FIRE1_LOCKUP 0, 5000, 10

// Helper
#define FIRE1PTR(NUM, DELAY) \
  StyleFirePtr<RED, YELLOW, NUM, DELAY, FIRE1_SPEED, \
    FIRE1_NORMAL, FIRE1_CLASH, FIRE1_LOCKUP>()



Preset presets[] = {
  { "MandoDarksaber;common", "common/tracks/Mandalorian.wav",
    StylePtr<Layers<  StyleFire<Stripes<2500,-5000,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black,20>,RotateColorsX<Variation,Rgb<4,4,6>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<115,115,170>>,70>,RotateColorsX<Variation,Rgb<50,50,75>>>,RotateColorsX<Variation,Rgb<31,31,47>>,0,5,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>>,  TransitionEffectL<TrConcat<TrFade<400>,RotateColorsX<Variation,Rgb<175,175,225>>,TrDelay<1000>,RotateColorsX<Variation,Rgb<175,175,225>>,TrFade<800>>,EFFECT_FORCE>,  AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black>,White,RotateColorsX<Variation,Rgb<100,100,150>>,White>,SwingSpeed<600>>,  LockupTrL<Layers<    AlphaL<AudioFlickerL<Red>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,    AlphaL<Red,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,AlphaL<Mix<SmoothStep<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<1000>>,Stripes<1500,2000,White,Rgb<100,100,150>>,Stripes<1500,-2500,White,Rgb<100,100,150>>>,Int<18000>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,  ResponsiveLightningBlockL<Strobe<Red,AudioFlicker<Red,Black>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<Red,Int<16000>>,30>,TrSmoothFade<600>>>,  AlphaL<White,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,  MultiTransitionEffectL<TrConcat<TrDelay<300>,RandomPerLEDFlickerL<Red>,TrDelay<1000>,RandomPerLEDFlickerL<Red>,TrFade<500>>,EFFECT_STAB>,  AlphaL<Mix<IsLessThan<BladeAngle<>,Int<26000>>,MultiTransitionEffectL<TrConcat<TrWipeIn<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipeIn<200>>,EFFECT_STAB>,MultiTransitionEffectL<TrConcat<TrWipe<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipe<200>>,EFFECT_STAB>>,Int<32768>>,  ResponsiveBlastWaveL<Red,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>>,  ResponsiveBlastWaveL<Red,Int<300>,Int<100>,Int<300>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>,EFFECT_CLASH>,  AlphaL<Black,SmoothStep<Scale<SlowNoise<Int<2400>>,Int<22000>,Int<40000>>,Int<22000>>>,  LockupTrL<AlphaL<BrownNoiseFlickerL<Red,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,  LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,  InOutTrL<TrWipe<300>,TrWipeIn<500>>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<BrownNoiseFlickerL<RotateColorsX<Variation,Rgb<100,100,150>>,Int<30>>,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,TrDelay<2000>>,EFFECT_RETRACTION>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Int<3000>,Int<2000>,Int<1000>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<100,100,150>>,100>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Rgb<50,50,50>>,BrownNoiseFlicker<Mix<NoisySoundLevel,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Int<4000>,RotateColorsX<Variation,Rgb<100,100,150>>>>,White,50>>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelay<6000>>,EFFECT_PREON>>>(),
    StylePtr<Layers<StripesX<Int<2000>,Int<-800>,RgbArg<BASE_COLOR_ARG,Rgb<255,0,0>>,Rgb<128,128,128>>,AlphaL<RgbArg<EMITTER_COLOR_ARG,Rgb<0,8,255>>,SmoothStep<IntArg<EMITTER_SIZE_ARG,2938>,Int<-6000>>>,TransitionEffectL<TrWaveX<RgbArg<BLAST_COLOR_ARG,Rgb<255,255,255>>,Scale<EffectRandomF<EFFECT_BLAST>,Int<100>,Int<400>>,Int<100>,Scale<EffectPosition<EFFECT_BLAST>,Int<100>,Int<400>>,Scale<EffectPosition<EFFECT_BLAST>,Int<28000>,Int<8000>>>,EFFECT_BLAST>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<12000>,Int<60000>>>>,TrFadeX<Scale<ClashImpactF<>,Int<200>,Int<400>>>>,EFFECT_CLASH>,TransitionEffectL<TrWaveX<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Int<100>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>>,EFFECT_CLASH>>,LockupTrL<TransitionEffect<AlphaL<AlphaMixL<Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<22000>>>,AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,BrownNoiseFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>,300>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<22000>>>>,AlphaL<AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<20000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,TrExtend<5000,TrInstant>,TrFade<5000>,EFFECT_LOCKUP_BEGIN>,TrConcat<TrJoin<TrDelay<50>,TrInstant>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,AlphaL<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<20000>,Int<60000>>>>>,TrFade<300>>,TrConcat<TrInstant,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL,Int<1>>,ResponsiveLightningBlockL<Strobe<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,AudioFlicker<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Blue>,50,1>,TrConcat<TrExtend<200,TrInstant>,AlphaL<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Int<10000>,Int<21000>>,Int<10000>>>,TrFade<200>>,TrConcat<TrInstant,RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,Int<1>>,LockupTrL<AlphaL<TransitionEffect<RandomPerLEDFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>>,BrownNoiseFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>,Int<300>>,TrExtend<4000,TrInstant>,TrFade<4000>,EFFECT_DRAG_BEGIN>,SmoothStep<Scale<TwistAngle<>,IntArg<DRAG_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrWipeIn<200>,TrWipe<200>,SaberBase::LOCKUP_DRAG,Int<1>>,LockupTrL<AlphaL<Stripes<2000,4000,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>,Mix<Sin<Int<50>>,Black,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>,Mix<Int<4096>,Black,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>>,SmoothStep<Scale<TwistAngle<>,IntArg<MELT_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrConcat<TrExtend<4000,TrWipeIn<200>>,AlphaL<HumpFlicker<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>,RotateColorsX<Int<3000>,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>,100>,SmoothStep<Scale<TwistAngle<>,IntArg<MELT_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrFade<4000>>,TrWipe<200>,SaberBase::LOCKUP_MELT,Int<1>>,InOutTrL<TrWipeX<BendTimePowInvX<IgnitionTime<300>,Mult<IntArg<IGNITION_OPTION2_ARG,10992>,Int<98304>>>>,TrWipeInX<BendTimePowX<RetractionTime<0>,Mult<IntArg<RETRACTION_OPTION2_ARG,10992>,Int<98304>>>>,Black>>>(),
    StylePtr<Layers<  StyleFire<Stripes<2500,-5000,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black,20>,RotateColorsX<Variation,Rgb<4,4,6>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<115,115,170>>,70>,RotateColorsX<Variation,Rgb<50,50,75>>>,RotateColorsX<Variation,Rgb<31,31,47>>,0,5,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>>,  TransitionEffectL<TrConcat<TrFade<400>,RotateColorsX<Variation,Rgb<175,175,225>>,TrDelay<1000>,RotateColorsX<Variation,Rgb<175,175,225>>,TrFade<800>>,EFFECT_FORCE>,  AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black>,White,RotateColorsX<Variation,Rgb<100,100,150>>,White>,SwingSpeed<600>>,  LockupTrL<Layers<    AlphaL<AudioFlickerL<Red>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,    AlphaL<Red,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,AlphaL<Mix<SmoothStep<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<1000>>,Stripes<1500,2000,White,Rgb<100,100,150>>,Stripes<1500,-2500,White,Rgb<100,100,150>>>,Int<18000>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,  ResponsiveLightningBlockL<Strobe<Red,AudioFlicker<Red,Black>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<Red,Int<16000>>,30>,TrSmoothFade<600>>>,  AlphaL<White,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,  MultiTransitionEffectL<TrConcat<TrDelay<300>,RandomPerLEDFlickerL<Red>,TrDelay<1000>,RandomPerLEDFlickerL<Red>,TrFade<500>>,EFFECT_STAB>,  AlphaL<Mix<IsLessThan<BladeAngle<>,Int<26000>>,MultiTransitionEffectL<TrConcat<TrWipeIn<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipeIn<200>>,EFFECT_STAB>,MultiTransitionEffectL<TrConcat<TrWipe<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipe<200>>,EFFECT_STAB>>,Int<32768>>,  ResponsiveBlastWaveL<Red,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>>,  ResponsiveBlastWaveL<Red,Int<300>,Int<100>,Int<300>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>,EFFECT_CLASH>,  AlphaL<Black,SmoothStep<Scale<SlowNoise<Int<2400>>,Int<22000>,Int<40000>>,Int<22000>>>,  LockupTrL<AlphaL<BrownNoiseFlickerL<Red,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,  LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,  InOutTrL<TrWipe<300>,TrWipeIn<500>>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<BrownNoiseFlickerL<RotateColorsX<Variation,Rgb<100,100,150>>,Int<30>>,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,TrDelay<2000>>,EFFECT_RETRACTION>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Int<3000>,Int<2000>,Int<1000>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<100,100,150>>,100>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Rgb<50,50,50>>,BrownNoiseFlicker<Mix<NoisySoundLevel,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Int<4000>,RotateColorsX<Variation,Rgb<100,100,150>>>>,White,50>>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelay<6000>>,EFFECT_PREON>>>(),
    "din\ndjarin"},
  { "GideonDarksaber;common", "common/traks/GideonEmerges.wav",
    StylePtr<Layers<  StyleFire<Stripes<2500,-5000,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black,20>,RotateColorsX<Variation,Rgb<4,4,6>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<115,115,170>>,70>,RotateColorsX<Variation,Rgb<50,50,75>>>,RotateColorsX<Variation,Rgb<31,31,47>>,0,5,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>>,  TransitionEffectL<TrConcat<TrFade<400>,RotateColorsX<Variation,Rgb<175,175,225>>,TrDelay<1000>,RotateColorsX<Variation,Rgb<175,175,225>>,TrFade<800>>,EFFECT_FORCE>,  AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black>,White,RotateColorsX<Variation,Rgb<100,100,150>>,White>,SwingSpeed<600>>,  LockupTrL<Layers<    AlphaL<AudioFlickerL<Red>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,    AlphaL<Red,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,AlphaL<Mix<SmoothStep<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<1000>>,Stripes<1500,2000,White,Rgb<100,100,150>>,Stripes<1500,-2500,White,Rgb<100,100,150>>>,Int<18000>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,  ResponsiveLightningBlockL<Strobe<Red,AudioFlicker<Red,Black>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<Red,Int<16000>>,30>,TrSmoothFade<600>>>,  AlphaL<White,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,  MultiTransitionEffectL<TrConcat<TrDelay<300>,RandomPerLEDFlickerL<Red>,TrDelay<1000>,RandomPerLEDFlickerL<Red>,TrFade<500>>,EFFECT_STAB>,  AlphaL<Mix<IsLessThan<BladeAngle<>,Int<26000>>,MultiTransitionEffectL<TrConcat<TrWipeIn<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipeIn<200>>,EFFECT_STAB>,MultiTransitionEffectL<TrConcat<TrWipe<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipe<200>>,EFFECT_STAB>>,Int<32768>>,  ResponsiveBlastWaveL<Red,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>>,  ResponsiveBlastWaveL<Red,Int<300>,Int<100>,Int<300>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>,EFFECT_CLASH>,  AlphaL<Black,SmoothStep<Scale<SlowNoise<Int<2400>>,Int<22000>,Int<40000>>,Int<22000>>>,  LockupTrL<AlphaL<BrownNoiseFlickerL<Red,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,  LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,  InOutTrL<TrWipe<300>,TrWipeIn<500>>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<BrownNoiseFlickerL<RotateColorsX<Variation,Rgb<100,100,150>>,Int<30>>,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,TrDelay<2000>>,EFFECT_RETRACTION>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Int<3000>,Int<2000>,Int<1000>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<100,100,150>>,100>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Rgb<50,50,50>>,BrownNoiseFlicker<Mix<NoisySoundLevel,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Int<4000>,RotateColorsX<Variation,Rgb<100,100,150>>>>,White,50>>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelay<6000>>,EFFECT_PREON>>>(),
    StylePtr<Layers<StripesX<Int<2000>,Int<-800>,RgbArg<BASE_COLOR_ARG,Rgb<255,0,0>>,Rgb<128,128,128>>,AlphaL<RgbArg<EMITTER_COLOR_ARG,Rgb<0,8,255>>,SmoothStep<IntArg<EMITTER_SIZE_ARG,2938>,Int<-6000>>>,TransitionEffectL<TrWaveX<RgbArg<BLAST_COLOR_ARG,Rgb<255,255,255>>,Scale<EffectRandomF<EFFECT_BLAST>,Int<100>,Int<400>>,Int<100>,Scale<EffectPosition<EFFECT_BLAST>,Int<100>,Int<400>>,Scale<EffectPosition<EFFECT_BLAST>,Int<28000>,Int<8000>>>,EFFECT_BLAST>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<12000>,Int<60000>>>>,TrFadeX<Scale<ClashImpactF<>,Int<200>,Int<400>>>>,EFFECT_CLASH>,TransitionEffectL<TrWaveX<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Int<100>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>>,EFFECT_CLASH>>,LockupTrL<TransitionEffect<AlphaL<AlphaMixL<Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<22000>>>,AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,BrownNoiseFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>,300>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<22000>>>>,AlphaL<AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<20000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,TrExtend<5000,TrInstant>,TrFade<5000>,EFFECT_LOCKUP_BEGIN>,TrConcat<TrJoin<TrDelay<50>,TrInstant>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,AlphaL<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<20000>,Int<60000>>>>>,TrFade<300>>,TrConcat<TrInstant,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL,Int<1>>,ResponsiveLightningBlockL<Strobe<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,AudioFlicker<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Blue>,50,1>,TrConcat<TrExtend<200,TrInstant>,AlphaL<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Int<10000>,Int<21000>>,Int<10000>>>,TrFade<200>>,TrConcat<TrInstant,RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,Int<1>>,LockupTrL<AlphaL<TransitionEffect<RandomPerLEDFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>>,BrownNoiseFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>,Int<300>>,TrExtend<4000,TrInstant>,TrFade<4000>,EFFECT_DRAG_BEGIN>,SmoothStep<Scale<TwistAngle<>,IntArg<DRAG_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrWipeIn<200>,TrWipe<200>,SaberBase::LOCKUP_DRAG,Int<1>>,LockupTrL<AlphaL<Stripes<2000,4000,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>,Mix<Sin<Int<50>>,Black,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>,Mix<Int<4096>,Black,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>>,SmoothStep<Scale<TwistAngle<>,IntArg<MELT_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrConcat<TrExtend<4000,TrWipeIn<200>>,AlphaL<HumpFlicker<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>,RotateColorsX<Int<3000>,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>,100>,SmoothStep<Scale<TwistAngle<>,IntArg<MELT_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrFade<4000>>,TrWipe<200>,SaberBase::LOCKUP_MELT,Int<1>>,InOutTrL<TrWipeX<BendTimePowInvX<IgnitionTime<300>,Mult<IntArg<IGNITION_OPTION2_ARG,10992>,Int<98304>>>>,TrWipeInX<BendTimePowX<RetractionTime<0>,Mult<IntArg<RETRACTION_OPTION2_ARG,10992>,Int<98304>>>>,Black>>>(),
    StylePtr<Layers<  StyleFire<Stripes<2500,-5000,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black,20>,RotateColorsX<Variation,Rgb<4,4,6>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<115,115,170>>,70>,RotateColorsX<Variation,Rgb<50,50,75>>>,RotateColorsX<Variation,Rgb<31,31,47>>,0,5,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>>,  TransitionEffectL<TrConcat<TrFade<400>,RotateColorsX<Variation,Rgb<175,175,225>>,TrDelay<1000>,RotateColorsX<Variation,Rgb<175,175,225>>,TrFade<800>>,EFFECT_FORCE>,  AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black>,White,RotateColorsX<Variation,Rgb<100,100,150>>,White>,SwingSpeed<600>>,  LockupTrL<Layers<    AlphaL<AudioFlickerL<Red>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,    AlphaL<Red,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,AlphaL<Mix<SmoothStep<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<1000>>,Stripes<1500,2000,White,Rgb<100,100,150>>,Stripes<1500,-2500,White,Rgb<100,100,150>>>,Int<18000>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,  ResponsiveLightningBlockL<Strobe<Red,AudioFlicker<Red,Black>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<Red,Int<16000>>,30>,TrSmoothFade<600>>>,  AlphaL<White,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,  MultiTransitionEffectL<TrConcat<TrDelay<300>,RandomPerLEDFlickerL<Red>,TrDelay<1000>,RandomPerLEDFlickerL<Red>,TrFade<500>>,EFFECT_STAB>,  AlphaL<Mix<IsLessThan<BladeAngle<>,Int<26000>>,MultiTransitionEffectL<TrConcat<TrWipeIn<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipeIn<200>>,EFFECT_STAB>,MultiTransitionEffectL<TrConcat<TrWipe<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipe<200>>,EFFECT_STAB>>,Int<32768>>,  ResponsiveBlastWaveL<Red,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>>,  ResponsiveBlastWaveL<Red,Int<300>,Int<100>,Int<300>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>,EFFECT_CLASH>,  AlphaL<Black,SmoothStep<Scale<SlowNoise<Int<2400>>,Int<22000>,Int<40000>>,Int<22000>>>,  LockupTrL<AlphaL<BrownNoiseFlickerL<Red,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,  LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,  InOutTrL<TrWipe<300>,TrWipeIn<500>>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<BrownNoiseFlickerL<RotateColorsX<Variation,Rgb<100,100,150>>,Int<30>>,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,TrDelay<2000>>,EFFECT_RETRACTION>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Int<3000>,Int<2000>,Int<1000>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<100,100,150>>,100>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Rgb<50,50,50>>,BrownNoiseFlicker<Mix<NoisySoundLevel,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Int<4000>,RotateColorsX<Variation,Rgb<100,100,150>>>>,White,50>>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelay<6000>>,EFFECT_PREON>>>(),
    "moff\ngideon"},
  { "VizslaDarksaber;common", "common/tracks/PreVizsla.wav",
    StylePtr<Layers<  StyleFire<Stripes<2500,-5000,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black,20>,RotateColorsX<Variation,Rgb<4,4,6>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<115,115,170>>,70>,RotateColorsX<Variation,Rgb<50,50,75>>>,RotateColorsX<Variation,Rgb<31,31,47>>,0,5,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>>,  TransitionEffectL<TrConcat<TrFade<400>,RotateColorsX<Variation,Rgb<175,175,225>>,TrDelay<1000>,RotateColorsX<Variation,Rgb<175,175,225>>,TrFade<800>>,EFFECT_FORCE>,  AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black>,White,RotateColorsX<Variation,Rgb<100,100,150>>,White>,SwingSpeed<600>>,  LockupTrL<Layers<    AlphaL<AudioFlickerL<Red>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,    AlphaL<Red,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,AlphaL<Mix<SmoothStep<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<1000>>,Stripes<1500,2000,White,Rgb<100,100,150>>,Stripes<1500,-2500,White,Rgb<100,100,150>>>,Int<18000>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,  ResponsiveLightningBlockL<Strobe<Red,AudioFlicker<Red,Black>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<Red,Int<16000>>,30>,TrSmoothFade<600>>>,  AlphaL<White,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,  MultiTransitionEffectL<TrConcat<TrDelay<300>,RandomPerLEDFlickerL<Red>,TrDelay<1000>,RandomPerLEDFlickerL<Red>,TrFade<500>>,EFFECT_STAB>,  AlphaL<Mix<IsLessThan<BladeAngle<>,Int<26000>>,MultiTransitionEffectL<TrConcat<TrWipeIn<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipeIn<200>>,EFFECT_STAB>,MultiTransitionEffectL<TrConcat<TrWipe<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipe<200>>,EFFECT_STAB>>,Int<32768>>,  ResponsiveBlastWaveL<Red,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>>,  ResponsiveBlastWaveL<Red,Int<300>,Int<100>,Int<300>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>,EFFECT_CLASH>,  AlphaL<Black,SmoothStep<Scale<SlowNoise<Int<2400>>,Int<22000>,Int<40000>>,Int<22000>>>,  LockupTrL<AlphaL<BrownNoiseFlickerL<Red,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,  LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,  InOutTrL<TrWipe<300>,TrWipeIn<500>>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<BrownNoiseFlickerL<RotateColorsX<Variation,Rgb<100,100,150>>,Int<30>>,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,TrDelay<2000>>,EFFECT_RETRACTION>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Int<3000>,Int<2000>,Int<1000>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<100,100,150>>,100>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Rgb<50,50,50>>,BrownNoiseFlicker<Mix<NoisySoundLevel,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Int<4000>,RotateColorsX<Variation,Rgb<100,100,150>>>>,White,50>>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelay<6000>>,EFFECT_PREON>>>(),
    StylePtr<Layers<StripesX<Int<2000>,Int<-800>,RgbArg<BASE_COLOR_ARG,Rgb<255,0,0>>,Rgb<128,128,128>>,AlphaL<RgbArg<EMITTER_COLOR_ARG,Rgb<0,8,255>>,SmoothStep<IntArg<EMITTER_SIZE_ARG,2938>,Int<-6000>>>,TransitionEffectL<TrWaveX<RgbArg<BLAST_COLOR_ARG,Rgb<255,255,255>>,Scale<EffectRandomF<EFFECT_BLAST>,Int<100>,Int<400>>,Int<100>,Scale<EffectPosition<EFFECT_BLAST>,Int<100>,Int<400>>,Scale<EffectPosition<EFFECT_BLAST>,Int<28000>,Int<8000>>>,EFFECT_BLAST>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<12000>,Int<60000>>>>,TrFadeX<Scale<ClashImpactF<>,Int<200>,Int<400>>>>,EFFECT_CLASH>,TransitionEffectL<TrWaveX<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Int<100>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>>,EFFECT_CLASH>>,LockupTrL<TransitionEffect<AlphaL<AlphaMixL<Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<22000>>>,AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,BrownNoiseFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>,300>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<22000>>>>,AlphaL<AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<20000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,TrExtend<5000,TrInstant>,TrFade<5000>,EFFECT_LOCKUP_BEGIN>,TrConcat<TrJoin<TrDelay<50>,TrInstant>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,AlphaL<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<20000>,Int<60000>>>>>,TrFade<300>>,TrConcat<TrInstant,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL,Int<1>>,ResponsiveLightningBlockL<Strobe<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,AudioFlicker<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Blue>,50,1>,TrConcat<TrExtend<200,TrInstant>,AlphaL<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Int<10000>,Int<21000>>,Int<10000>>>,TrFade<200>>,TrConcat<TrInstant,RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,Int<1>>,LockupTrL<AlphaL<TransitionEffect<RandomPerLEDFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>>,BrownNoiseFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>,Int<300>>,TrExtend<4000,TrInstant>,TrFade<4000>,EFFECT_DRAG_BEGIN>,SmoothStep<Scale<TwistAngle<>,IntArg<DRAG_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrWipeIn<200>,TrWipe<200>,SaberBase::LOCKUP_DRAG,Int<1>>,LockupTrL<AlphaL<Stripes<2000,4000,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>,Mix<Sin<Int<50>>,Black,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>,Mix<Int<4096>,Black,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>>,SmoothStep<Scale<TwistAngle<>,IntArg<MELT_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrConcat<TrExtend<4000,TrWipeIn<200>>,AlphaL<HumpFlicker<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>,RotateColorsX<Int<3000>,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>,100>,SmoothStep<Scale<TwistAngle<>,IntArg<MELT_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrFade<4000>>,TrWipe<200>,SaberBase::LOCKUP_MELT,Int<1>>,InOutTrL<TrWipeX<BendTimePowInvX<IgnitionTime<300>,Mult<IntArg<IGNITION_OPTION2_ARG,10992>,Int<98304>>>>,TrWipeInX<BendTimePowX<RetractionTime<0>,Mult<IntArg<RETRACTION_OPTION2_ARG,10992>,Int<98304>>>>,Black>>>(),
    StylePtr<Layers<  StyleFire<Stripes<2500,-5000,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black,20>,RotateColorsX<Variation,Rgb<4,4,6>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<115,115,170>>,70>,RotateColorsX<Variation,Rgb<50,50,75>>>,RotateColorsX<Variation,Rgb<31,31,47>>,0,5,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>>,  TransitionEffectL<TrConcat<TrFade<400>,RotateColorsX<Variation,Rgb<175,175,225>>,TrDelay<1000>,RotateColorsX<Variation,Rgb<175,175,225>>,TrFade<800>>,EFFECT_FORCE>,  AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black>,White,RotateColorsX<Variation,Rgb<100,100,150>>,White>,SwingSpeed<600>>,  LockupTrL<Layers<    AlphaL<AudioFlickerL<Red>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,    AlphaL<Red,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,AlphaL<Mix<SmoothStep<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<1000>>,Stripes<1500,2000,White,Rgb<100,100,150>>,Stripes<1500,-2500,White,Rgb<100,100,150>>>,Int<18000>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,  ResponsiveLightningBlockL<Strobe<Red,AudioFlicker<Red,Black>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<Red,Int<16000>>,30>,TrSmoothFade<600>>>,  AlphaL<White,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,  MultiTransitionEffectL<TrConcat<TrDelay<300>,RandomPerLEDFlickerL<Red>,TrDelay<1000>,RandomPerLEDFlickerL<Red>,TrFade<500>>,EFFECT_STAB>,  AlphaL<Mix<IsLessThan<BladeAngle<>,Int<26000>>,MultiTransitionEffectL<TrConcat<TrWipeIn<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipeIn<200>>,EFFECT_STAB>,MultiTransitionEffectL<TrConcat<TrWipe<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipe<200>>,EFFECT_STAB>>,Int<32768>>,  ResponsiveBlastWaveL<Red,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>>,  ResponsiveBlastWaveL<Red,Int<300>,Int<100>,Int<300>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>,EFFECT_CLASH>,  AlphaL<Black,SmoothStep<Scale<SlowNoise<Int<2400>>,Int<22000>,Int<40000>>,Int<22000>>>,  LockupTrL<AlphaL<BrownNoiseFlickerL<Red,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,  LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,  InOutTrL<TrWipe<300>,TrWipeIn<500>>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<BrownNoiseFlickerL<RotateColorsX<Variation,Rgb<100,100,150>>,Int<30>>,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,TrDelay<2000>>,EFFECT_RETRACTION>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Int<3000>,Int<2000>,Int<1000>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<100,100,150>>,100>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Rgb<50,50,50>>,BrownNoiseFlicker<Mix<NoisySoundLevel,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Int<4000>,RotateColorsX<Variation,Rgb<100,100,150>>>>,White,50>>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelay<6000>>,EFFECT_PREON>>>(),
    "pre\nvizsla"},
  { "MaulDarksaber;common", "common/tracks/satinesdeath.wav",
    StylePtr<Layers<  StyleFire<Stripes<2500,-5000,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black,20>,RotateColorsX<Variation,Rgb<4,4,6>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<115,115,170>>,70>,RotateColorsX<Variation,Rgb<50,50,75>>>,RotateColorsX<Variation,Rgb<31,31,47>>,0,5,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>>,  TransitionEffectL<TrConcat<TrFade<400>,RotateColorsX<Variation,Rgb<175,175,225>>,TrDelay<1000>,RotateColorsX<Variation,Rgb<175,175,225>>,TrFade<800>>,EFFECT_FORCE>,  AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black>,White,RotateColorsX<Variation,Rgb<100,100,150>>,White>,SwingSpeed<600>>,  LockupTrL<Layers<    AlphaL<AudioFlickerL<Red>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,    AlphaL<Red,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,AlphaL<Mix<SmoothStep<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<1000>>,Stripes<1500,2000,White,Rgb<100,100,150>>,Stripes<1500,-2500,White,Rgb<100,100,150>>>,Int<18000>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,  ResponsiveLightningBlockL<Strobe<Red,AudioFlicker<Red,Black>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<Red,Int<16000>>,30>,TrSmoothFade<600>>>,  AlphaL<White,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,  MultiTransitionEffectL<TrConcat<TrDelay<300>,RandomPerLEDFlickerL<Red>,TrDelay<1000>,RandomPerLEDFlickerL<Red>,TrFade<500>>,EFFECT_STAB>,  AlphaL<Mix<IsLessThan<BladeAngle<>,Int<26000>>,MultiTransitionEffectL<TrConcat<TrWipeIn<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipeIn<200>>,EFFECT_STAB>,MultiTransitionEffectL<TrConcat<TrWipe<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipe<200>>,EFFECT_STAB>>,Int<32768>>,  ResponsiveBlastWaveL<Red,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>>,  ResponsiveBlastWaveL<Red,Int<300>,Int<100>,Int<300>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>,EFFECT_CLASH>,  AlphaL<Black,SmoothStep<Scale<SlowNoise<Int<2400>>,Int<22000>,Int<40000>>,Int<22000>>>,  LockupTrL<AlphaL<BrownNoiseFlickerL<Red,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,  LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,  InOutTrL<TrWipe<300>,TrWipeIn<500>>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<BrownNoiseFlickerL<RotateColorsX<Variation,Rgb<100,100,150>>,Int<30>>,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,TrDelay<2000>>,EFFECT_RETRACTION>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Int<3000>,Int<2000>,Int<1000>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<100,100,150>>,100>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Rgb<50,50,50>>,BrownNoiseFlicker<Mix<NoisySoundLevel,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Int<4000>,RotateColorsX<Variation,Rgb<100,100,150>>>>,White,50>>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelay<6000>>,EFFECT_PREON>>>(),
    StylePtr<Layers<StripesX<Int<2000>,Int<-800>,RgbArg<BASE_COLOR_ARG,Rgb<255,0,0>>,Rgb<128,128,128>>,AlphaL<RgbArg<EMITTER_COLOR_ARG,Rgb<0,8,255>>,SmoothStep<IntArg<EMITTER_SIZE_ARG,2938>,Int<-6000>>>,TransitionEffectL<TrWaveX<RgbArg<BLAST_COLOR_ARG,Rgb<255,255,255>>,Scale<EffectRandomF<EFFECT_BLAST>,Int<100>,Int<400>>,Int<100>,Scale<EffectPosition<EFFECT_BLAST>,Int<100>,Int<400>>,Scale<EffectPosition<EFFECT_BLAST>,Int<28000>,Int<8000>>>,EFFECT_BLAST>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<12000>,Int<60000>>>>,TrFadeX<Scale<ClashImpactF<>,Int<200>,Int<400>>>>,EFFECT_CLASH>,TransitionEffectL<TrWaveX<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Int<100>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>>,EFFECT_CLASH>>,LockupTrL<TransitionEffect<AlphaL<AlphaMixL<Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<22000>>>,AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,BrownNoiseFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>,300>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<22000>>>>,AlphaL<AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<20000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,TrExtend<5000,TrInstant>,TrFade<5000>,EFFECT_LOCKUP_BEGIN>,TrConcat<TrJoin<TrDelay<50>,TrInstant>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,AlphaL<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<20000>,Int<60000>>>>>,TrFade<300>>,TrConcat<TrInstant,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL,Int<1>>,ResponsiveLightningBlockL<Strobe<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,AudioFlicker<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Blue>,50,1>,TrConcat<TrExtend<200,TrInstant>,AlphaL<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Int<10000>,Int<21000>>,Int<10000>>>,TrFade<200>>,TrConcat<TrInstant,RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,Int<1>>,LockupTrL<AlphaL<TransitionEffect<RandomPerLEDFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>>,BrownNoiseFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>,Int<300>>,TrExtend<4000,TrInstant>,TrFade<4000>,EFFECT_DRAG_BEGIN>,SmoothStep<Scale<TwistAngle<>,IntArg<DRAG_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrWipeIn<200>,TrWipe<200>,SaberBase::LOCKUP_DRAG,Int<1>>,LockupTrL<AlphaL<Stripes<2000,4000,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>,Mix<Sin<Int<50>>,Black,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>,Mix<Int<4096>,Black,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>>,SmoothStep<Scale<TwistAngle<>,IntArg<MELT_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrConcat<TrExtend<4000,TrWipeIn<200>>,AlphaL<HumpFlicker<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>,RotateColorsX<Int<3000>,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>,100>,SmoothStep<Scale<TwistAngle<>,IntArg<MELT_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrFade<4000>>,TrWipe<200>,SaberBase::LOCKUP_MELT,Int<1>>,InOutTrL<TrWipeX<BendTimePowInvX<IgnitionTime<300>,Mult<IntArg<IGNITION_OPTION2_ARG,10992>,Int<98304>>>>,TrWipeInX<BendTimePowX<RetractionTime<0>,Mult<IntArg<RETRACTION_OPTION2_ARG,10992>,Int<98304>>>>,Black>>>(),
    StylePtr<Layers<  StyleFire<Stripes<2500,-5000,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black,20>,RotateColorsX<Variation,Rgb<4,4,6>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<115,115,170>>,70>,RotateColorsX<Variation,Rgb<50,50,75>>>,RotateColorsX<Variation,Rgb<31,31,47>>,0,5,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>>,  TransitionEffectL<TrConcat<TrFade<400>,RotateColorsX<Variation,Rgb<175,175,225>>,TrDelay<1000>,RotateColorsX<Variation,Rgb<175,175,225>>,TrFade<800>>,EFFECT_FORCE>,  AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black>,White,RotateColorsX<Variation,Rgb<100,100,150>>,White>,SwingSpeed<600>>,  LockupTrL<Layers<    AlphaL<AudioFlickerL<Red>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,    AlphaL<Red,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,AlphaL<Mix<SmoothStep<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<1000>>,Stripes<1500,2000,White,Rgb<100,100,150>>,Stripes<1500,-2500,White,Rgb<100,100,150>>>,Int<18000>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,  ResponsiveLightningBlockL<Strobe<Red,AudioFlicker<Red,Black>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<Red,Int<16000>>,30>,TrSmoothFade<600>>>,  AlphaL<White,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,  MultiTransitionEffectL<TrConcat<TrDelay<300>,RandomPerLEDFlickerL<Red>,TrDelay<1000>,RandomPerLEDFlickerL<Red>,TrFade<500>>,EFFECT_STAB>,  AlphaL<Mix<IsLessThan<BladeAngle<>,Int<26000>>,MultiTransitionEffectL<TrConcat<TrWipeIn<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipeIn<200>>,EFFECT_STAB>,MultiTransitionEffectL<TrConcat<TrWipe<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipe<200>>,EFFECT_STAB>>,Int<32768>>,  ResponsiveBlastWaveL<Red,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>>,  ResponsiveBlastWaveL<Red,Int<300>,Int<100>,Int<300>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>,EFFECT_CLASH>,  AlphaL<Black,SmoothStep<Scale<SlowNoise<Int<2400>>,Int<22000>,Int<40000>>,Int<22000>>>,  LockupTrL<AlphaL<BrownNoiseFlickerL<Red,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,  LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,  InOutTrL<TrWipe<300>,TrWipeIn<500>>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<BrownNoiseFlickerL<RotateColorsX<Variation,Rgb<100,100,150>>,Int<30>>,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,TrDelay<2000>>,EFFECT_RETRACTION>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Int<3000>,Int<2000>,Int<1000>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<100,100,150>>,100>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Rgb<50,50,50>>,BrownNoiseFlicker<Mix<NoisySoundLevel,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Int<4000>,RotateColorsX<Variation,Rgb<100,100,150>>>>,White,50>>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelay<6000>>,EFFECT_PREON>>>(),
    "darth\nmaul"},
  { "SabineDarksaber;common", "common/tracks/Rebels Theme.wav",
    StylePtr<Layers<  StyleFire<Stripes<2500,-5000,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black,20>,RotateColorsX<Variation,Rgb<4,4,6>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<115,115,170>>,70>,RotateColorsX<Variation,Rgb<50,50,75>>>,RotateColorsX<Variation,Rgb<31,31,47>>,0,5,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>>,  TransitionEffectL<TrConcat<TrFade<400>,RotateColorsX<Variation,Rgb<175,175,225>>,TrDelay<1000>,RotateColorsX<Variation,Rgb<175,175,225>>,TrFade<800>>,EFFECT_FORCE>,  AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black>,White,RotateColorsX<Variation,Rgb<100,100,150>>,White>,SwingSpeed<600>>,  LockupTrL<Layers<    AlphaL<AudioFlickerL<Red>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,    AlphaL<Red,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,AlphaL<Mix<SmoothStep<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<1000>>,Stripes<1500,2000,White,Rgb<100,100,150>>,Stripes<1500,-2500,White,Rgb<100,100,150>>>,Int<18000>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,  ResponsiveLightningBlockL<Strobe<Red,AudioFlicker<Red,Black>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<Red,Int<16000>>,30>,TrSmoothFade<600>>>,  AlphaL<White,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,  MultiTransitionEffectL<TrConcat<TrDelay<300>,RandomPerLEDFlickerL<Red>,TrDelay<1000>,RandomPerLEDFlickerL<Red>,TrFade<500>>,EFFECT_STAB>,  AlphaL<Mix<IsLessThan<BladeAngle<>,Int<26000>>,MultiTransitionEffectL<TrConcat<TrWipeIn<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipeIn<200>>,EFFECT_STAB>,MultiTransitionEffectL<TrConcat<TrWipe<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipe<200>>,EFFECT_STAB>>,Int<32768>>,  ResponsiveBlastWaveL<Red,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>>,  ResponsiveBlastWaveL<Red,Int<300>,Int<100>,Int<300>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>,EFFECT_CLASH>,  AlphaL<Black,SmoothStep<Scale<SlowNoise<Int<2400>>,Int<22000>,Int<40000>>,Int<22000>>>,  LockupTrL<AlphaL<BrownNoiseFlickerL<Red,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,  LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,  InOutTrL<TrWipe<300>,TrWipeIn<500>>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<BrownNoiseFlickerL<RotateColorsX<Variation,Rgb<100,100,150>>,Int<30>>,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,TrDelay<2000>>,EFFECT_RETRACTION>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Int<3000>,Int<2000>,Int<1000>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<100,100,150>>,100>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Rgb<50,50,50>>,BrownNoiseFlicker<Mix<NoisySoundLevel,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Int<4000>,RotateColorsX<Variation,Rgb<100,100,150>>>>,White,50>>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelay<6000>>,EFFECT_PREON>>>(),
    StylePtr<Layers<StripesX<Int<2000>,Int<-800>,RgbArg<BASE_COLOR_ARG,Rgb<255,0,0>>,Rgb<128,128,128>>,AlphaL<RgbArg<EMITTER_COLOR_ARG,Rgb<0,8,255>>,SmoothStep<IntArg<EMITTER_SIZE_ARG,2938>,Int<-6000>>>,TransitionEffectL<TrWaveX<RgbArg<BLAST_COLOR_ARG,Rgb<255,255,255>>,Scale<EffectRandomF<EFFECT_BLAST>,Int<100>,Int<400>>,Int<100>,Scale<EffectPosition<EFFECT_BLAST>,Int<100>,Int<400>>,Scale<EffectPosition<EFFECT_BLAST>,Int<28000>,Int<8000>>>,EFFECT_BLAST>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,TransitionEffectL<TrConcat<TrInstant,AlphaL<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<12000>,Int<60000>>>>,TrFadeX<Scale<ClashImpactF<>,Int<200>,Int<400>>>>,EFFECT_CLASH>,TransitionEffectL<TrWaveX<RgbArg<CLASH_COLOR_ARG,Rgb<255,255,255>>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Int<100>,Scale<ClashImpactF<>,Int<100>,Int<400>>,Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>>,EFFECT_CLASH>>,LockupTrL<TransitionEffect<AlphaL<AlphaMixL<Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<22000>>>,AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,BrownNoiseFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<12000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>,300>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<22000>>>>,AlphaL<AudioFlicker<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Mix<Int<20000>,Black,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,TrExtend<5000,TrInstant>,TrFade<5000>,EFFECT_LOCKUP_BEGIN>,TrConcat<TrJoin<TrDelay<50>,TrInstant>,Mix<IsLessThan<ClashImpactF<>,Int<26000>>,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,AlphaL<RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-12000>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<10000>>>,Sum<IntArg<LOCKUP_POSITION_ARG,16000>,Int<-10000>>>,Scale<ClashImpactF<>,Int<20000>,Int<60000>>>>>,TrFade<300>>,TrConcat<TrInstant,RgbArg<LOCKUP_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL,Int<1>>,ResponsiveLightningBlockL<Strobe<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,AudioFlicker<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Blue>,50,1>,TrConcat<TrExtend<200,TrInstant>,AlphaL<RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,Bump<Scale<BladeAngle<>,Int<10000>,Int<21000>>,Int<10000>>>,TrFade<200>>,TrConcat<TrInstant,RgbArg<LB_COLOR_ARG,Rgb<255,255,255>>,TrFade<400>>,Int<1>>,LockupTrL<AlphaL<TransitionEffect<RandomPerLEDFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>>,BrownNoiseFlickerL<RgbArg<DRAG_COLOR_ARG,Rgb<255,255,255>>,Int<300>>,TrExtend<4000,TrInstant>,TrFade<4000>,EFFECT_DRAG_BEGIN>,SmoothStep<Scale<TwistAngle<>,IntArg<DRAG_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrWipeIn<200>,TrWipe<200>,SaberBase::LOCKUP_DRAG,Int<1>>,LockupTrL<AlphaL<Stripes<2000,4000,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>,Mix<Sin<Int<50>>,Black,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>,Mix<Int<4096>,Black,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>>,SmoothStep<Scale<TwistAngle<>,IntArg<MELT_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrConcat<TrExtend<4000,TrWipeIn<200>>,AlphaL<HumpFlicker<Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>,RotateColorsX<Int<3000>,Mix<TwistAngle<>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>,RotateColorsX<Int<3000>,RgbArg<STAB_COLOR_ARG,Rgb<255,68,0>>>>>,100>,SmoothStep<Scale<TwistAngle<>,IntArg<MELT_SIZE_ARG,28000>,Int<30000>>,Int<3000>>>,TrFade<4000>>,TrWipe<200>,SaberBase::LOCKUP_MELT,Int<1>>,InOutTrL<TrWipeX<BendTimePowInvX<IgnitionTime<300>,Mult<IntArg<IGNITION_OPTION2_ARG,10992>,Int<98304>>>>,TrWipeInX<BendTimePowX<RetractionTime<0>,Mult<IntArg<RETRACTION_OPTION2_ARG,10992>,Int<98304>>>>,Black>>>(),
    StylePtr<Layers<  StyleFire<Stripes<2500,-5000,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black,20>,RotateColorsX<Variation,Rgb<4,4,6>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<115,115,170>>,70>,RotateColorsX<Variation,Rgb<50,50,75>>>,RotateColorsX<Variation,Rgb<31,31,47>>,0,5,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>,FireConfig<2,3000,0>>,  TransitionEffectL<TrConcat<TrFade<400>,RotateColorsX<Variation,Rgb<175,175,225>>,TrDelay<1000>,RotateColorsX<Variation,Rgb<175,175,225>>,TrFade<800>>,EFFECT_FORCE>,  AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Black>,White,RotateColorsX<Variation,Rgb<100,100,150>>,White>,SwingSpeed<600>>,  LockupTrL<Layers<    AlphaL<AudioFlickerL<Red>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,    AlphaL<Red,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,AlphaL<Mix<SmoothStep<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>>,Int<1000>>,Stripes<1500,2000,White,Rgb<100,100,150>>,Stripes<1500,-2500,White,Rgb<100,100,150>>>,Int<18000>>,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,  ResponsiveLightningBlockL<Strobe<Red,AudioFlicker<Red,Black>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<Red,Int<16000>>,30>,TrSmoothFade<600>>>,  AlphaL<White,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,  MultiTransitionEffectL<TrConcat<TrDelay<300>,RandomPerLEDFlickerL<Red>,TrDelay<1000>,RandomPerLEDFlickerL<Red>,TrFade<500>>,EFFECT_STAB>,  AlphaL<Mix<IsLessThan<BladeAngle<>,Int<26000>>,MultiTransitionEffectL<TrConcat<TrWipeIn<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipeIn<200>>,EFFECT_STAB>,MultiTransitionEffectL<TrConcat<TrWipe<200>,BrownNoiseFlickerL<White,Int<200>>,TrWipe<200>>,EFFECT_STAB>>,Int<32768>>,  ResponsiveBlastWaveL<Red,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>>,  ResponsiveBlastWaveL<Red,Int<300>,Int<100>,Int<300>,Scale<BladeAngle<0,16000>,Int<10000>,Int<30000>>,Int<10000>,EFFECT_CLASH>,  AlphaL<Black,SmoothStep<Scale<SlowNoise<Int<2400>>,Int<22000>,Int<40000>>,Int<22000>>>,  LockupTrL<AlphaL<BrownNoiseFlickerL<Red,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,  LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,  InOutTrL<TrWipe<300>,TrWipeIn<500>>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<BrownNoiseFlickerL<RotateColorsX<Variation,Rgb<100,100,150>>,Int<30>>,SmoothStep<Scale<SlowNoise<Int<2000>>,Int<1000>,Int<4000>>,Int<-4000>>>,TrDelay<2000>>,EFFECT_RETRACTION>,  TransitionEffectL<TrConcat<TrInstant,AlphaL<Mix<Trigger<EFFECT_PREON,Int<3000>,Int<2000>,Int<1000>>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<100,100,150>>,100>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<100,100,150>>,Rgb<50,50,50>>,BrownNoiseFlicker<Mix<NoisySoundLevel,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Int<4000>,RotateColorsX<Variation,Rgb<100,100,150>>>>,White,50>>,SmoothStep<Scale<NoisySoundLevel,Int<-10000>,Int<36000>>,Int<-4000>>>,TrDelay<6000>>,EFFECT_PREON>>>(),
    "sabine\nwren"},
};

// Order of Blades
//  - Main Blade
//  - Single Pixel Crystal Chamber
//  - Switch PCB Pixels
BladeConfig blades[] = {
  { 0,
    SubBlade(1, 108, WS281XBladePtr<108, bladePin, Color8::GRB, PowerPINS<bladePowerPin2, bladePowerPin3> >()),
    SubBlade(0, 0, NULL),
    WS281XBladePtr<2, blade2Pin, Color8::GRB, PowerPINS<bladePowerPin4> >(),
    CONFIGARRAY(presets) },
};
#endif

#ifdef CONFIG_BUTTONS
Button PowerButton(BUTTON_POWER, powerButtonPin, "pow");
Button AuxButton(BUTTON_AUX, auxPin, "aux");
#endif
2

i don’t see anything obviously wrong with your config or your wiring diagram.
It seems like it should work.
When you’re measuring the FETs, where do you put the other probe?

Maybe try this page?

3

Thanks. I checked that page to remind myself what pad the other probe should be on. I’m measuring between Batt+ and LED2/LED3/LED4. I’ve installed several other sabers recently, and I’ve taken the same measurement as an indicator that the FETs I’ve configured are working.

4

It seems likely that this board is bad somehow.
Do you have warranty?

5

Not sure about a warranty. I purchased the board as part of an install kit from Goth3D-Designs. One more wrinkle to this puzzle though. I got another board in today for a different build, and I was able to replicate the issue on that board as well. It seems unlikely that two boards from different sources would fail in the same way, so my eye is drawn to the config file as a likely suspect. Side note, but the micro-usb port on the original board is pretty finicky getting a reliable connection via cable. I suspect a loose solder joint.

Edit: Further evidence to support this is in the fact that I get expected voltages from the FETs on both boards when uploading a different config. One specific observation from the serial monitor: a board with config in question does not print the “playing <font_dir>/<sound_file.wav>” message. The only messages I see are mostly clash events, with a few swing events, while I move the board around as if swinging in a saber.

6

Interesting, I guess we dig into the software side of things then:

  1. what kid of computer do you have? (windows, mac, linux? arm, x86?)
  2. What version of Arduino do you have?
  3. What version of the Arduino-Proffieboard plugin?
  4. What version of ProffieOS?
  5. Do you have “Smallest Code” in Arduino → Tools, or something else?

Wait, I just noticed something, your subblade is not set up properly:

The SubBlade says you have 109 LEDs, but the WS281XBladePtr<> says you have 108, which is it?

7

Good catch. It looks like I miscounted the pixels anyway. There are 112 in the main blade, and an additional one for the accent pixel. I corrected the first line to:

SubBlade(1, 112, WS281XBladePtr<113, bladePin, Color8::GRB, PowerPINS<bladePowerPin2, bladePowerPin3> >()),

Once I uploaded again, the FETs worked as expected (i.e. provided nominal ~4V from Batt+ to match battery voltage). No error message from the compiler about the incorrect blade config, it just didn’t enable the FETs.

To answer the software questions, I’m running on Windows 10, Arduino IDE v2.3.8, Proffie plugin v4.6, ProffieOS v7.14, and “Smallest Code” is enabled in the Arduino IDE.
