I thought about just dm-ing, but then considered others may be interested in the info.

@NoSloppy , I just picked up a Marrok hilt and saw @Sabersforever youtube video about his install and its dual blade control and features.

I read thru the OS8 features in your prop, and I was wondering if this is good to go now that OS8 has released, or was there still some tweaking needed for this specific setup.

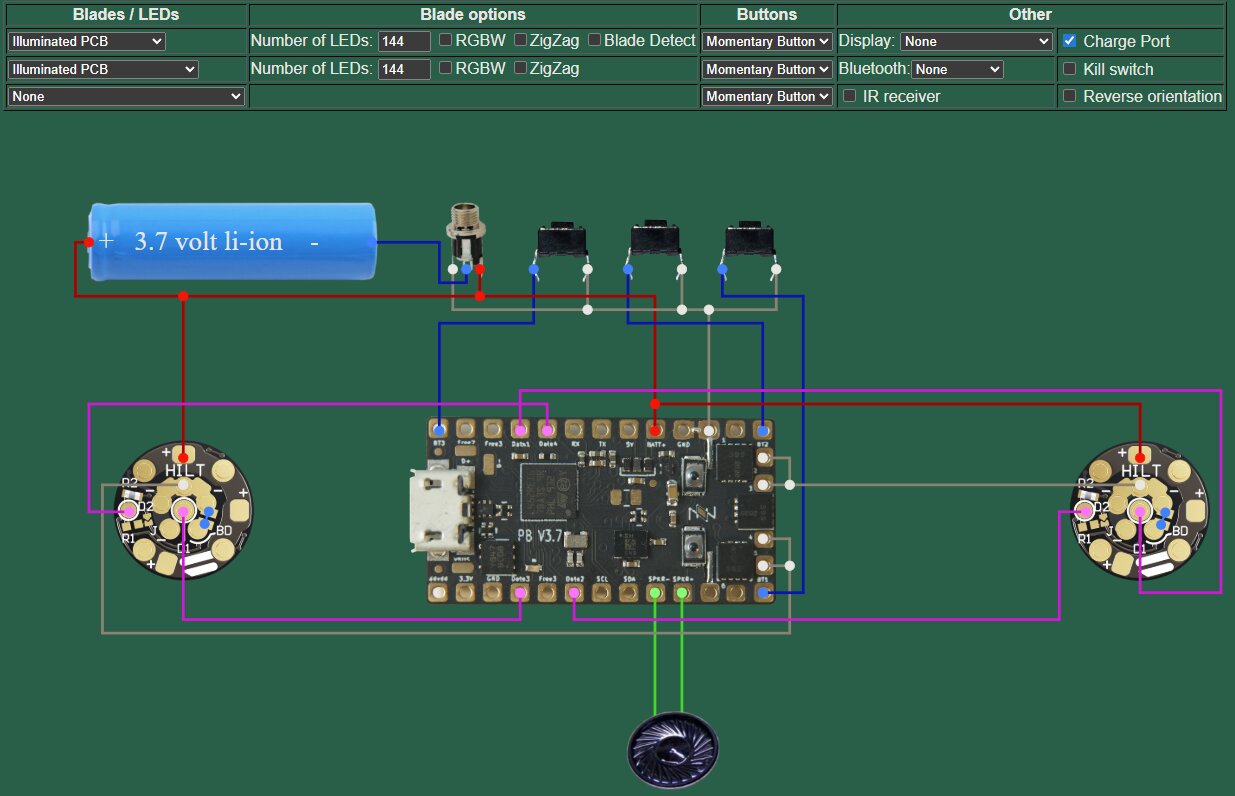

Also,@Sabersforever was it wired more or less like the V3 configurator?

image1235Ă—796 110 KB

2

It’s been GTG since we finished development of it, which was a long time before OS8 went official.
Feel free to ask anything :slight_smile:

The prop file has extensive how-to notes, but don’t be discouraged. I know it looks like a lot, but after the “general notes” beginning section, it breaks out into control sections. Only one of these will apply for each button/blade configuration.
Each of those sections contains 2 ways of reading the controls:
by feature
by button click

TL;DR
It looks like a ton of reading but you only need 1/3 of all that.

It works great, and even on one button sabers.
2 is probably most standard, but I think the Marrok has a 3rd button, so that can be your "both on/off’ trigger.
The prop accounts for almost any configuration, so yeah. Have fun, LMK.

1 Like
3

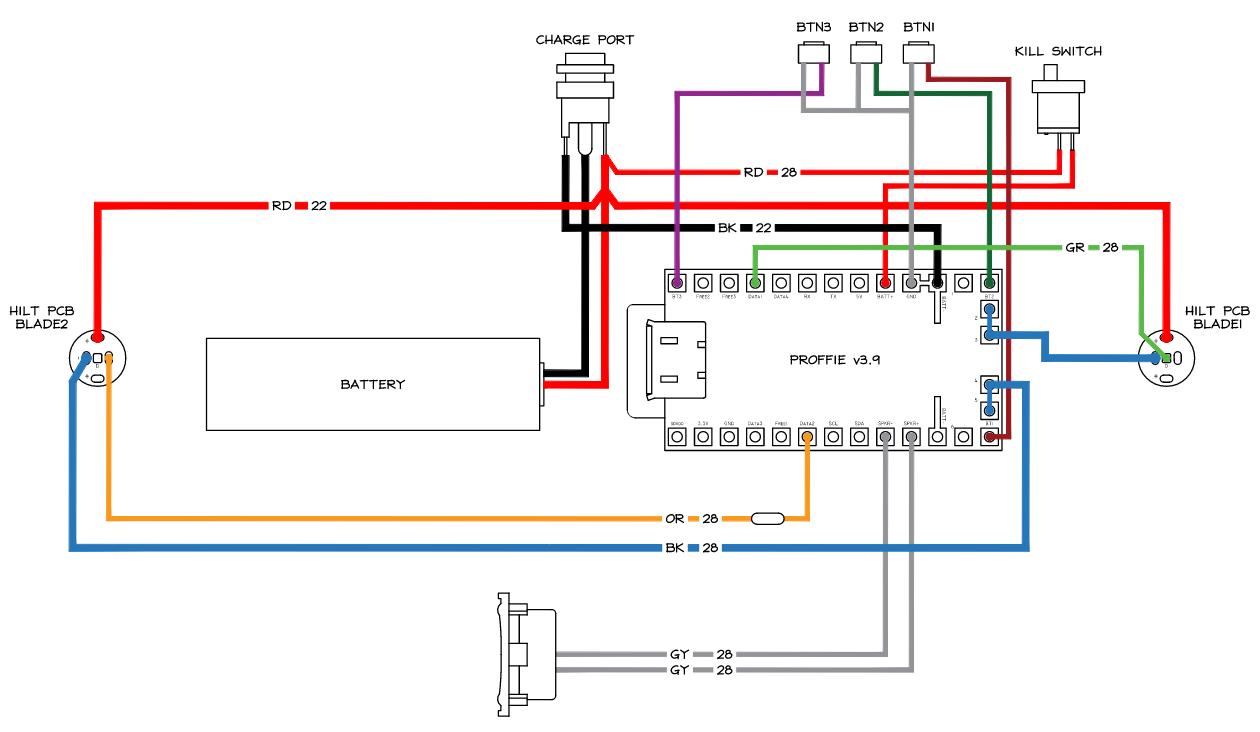

It looks like sabersforever hasn’t been on the forum for well over a year, so I will ask you guys about this wiring diagram:

image1260Ă—732 51.9 KB

Does this look good for a full dual blade setup? They wont be quantum pixel blades, just dual strip ws2812 (I believe). the battery will be a keeppower 21700 wired 15A discharge

4

Seems reasonable. I wouldn’t wire the charge port to cut the negative power though. You don’t need a kill key and and kill switch.

1 Like
5

Thanks, those charge ports always confuse me for some reason. I have only installed one once.

Is this more like it, or am I still off?

image720Ă—464 10.4 KB

So the power to the other stuff is interrupted when the charger is plugged in.

6

I would just connect two wires to the charge port, one for + and one for -.
Both go directly to the + and - on the battery.

7

Thanks.

I guess there is no issue with back feeding voltage to the the devices if the proffie is off via the switch?

8

The charger will increase the voltage coming from the battery, but there is no “back feeding”.
